Cambium Xh2-240 Xirrus Outdoor 4x4 Ap. Dual 11ac Wave 2 Sdr Radios (5GHz/2.4GHz). External Antennas XH2-240
SKU
396507
Brand
MPN
XH2-240
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$595.00
Buy Now And Earn 595 Reward Points!

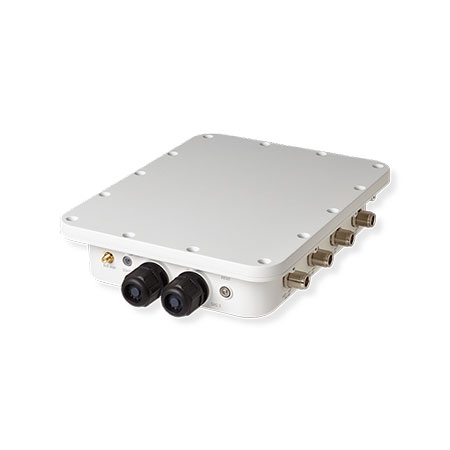

XH2-240 Xirrus Outdoor 4x4 AP. Dual 11ac Wave 2 SDR radios (5GHz/2.4GHz). External antennas
| SKU | XH2-240 |
|---|---|
| Brand | Cambium Networks (Xirrus) |
| Model | XH2-240 |
| Series | XR Wireless Array Series |
| Weight | 2.49 kg (5.5 lb) |
| Category | Networking |
| Humidity | 10–90% non‑condensing |
| Encryption | Open, WEP, TKIP‑MIC (RC4 40/104/128), AES (as supported by WPA/WPA2) |
| Management | Xirrus Management System (XMS) - Cloud or XMS On‑Prem; integration with Splunk; NetFlow v9 / IPFIX support |
| Description | The Cambium Networks Xirrus XH2-240 is a ruggedized outdoor Wi‑Fi access point with dual software‑defined 802.11ac Wave 2 radios (2.4 GHz / 5 GHz) and 4x4:4 MIMO. Designed for extreme environments (IP67 / NEMA 4X), it delivers up to 6.9 Gbps aggregate Wi‑Fi capacity, supports MU‑MIMO (up to 8 streams), and up to 512 associated clients per AP. The unit uses external directional antennas (not included), offers 8 N‑Type antenna connectors (4 per radio), dual 1 GbE uplinks with 802.3at PoE+ power input (max consumption 25.5 W), and integrated controller functionality with Xirrus Management System (XMS) cloud or on‑premise management and EasyPass access services. Ideal for campuses, transportation hubs, arenas, industrial sites, and other harsh outdoor deployments. |
| PoE Support | 802.3at PoE+ compatible (PoE input) |
| WiFi Radios | 2 |
| Antenna Type | External (not included) |
| Sub-Category | Wireless Networking |
| Maximum SSIDs | 16 |
| Maximum VLANs | 64 |
| Product Title | Cambium Networks Xirrus XH2-240 Outdoor 4x4 802.11ac Wave 2 Access Point (External Antennas Not Included) |
| Wired Uplinks | 2 × 1 GbE (one PoE input) |
| Bluetooth / BLE | Yes |
| Channel Bonding | Up to 160 MHz |
| MIMO Technology | MU‑MIMO: up to 8 streams; SU‑MIMO: up to 8 streams |
| WiFi Technology | 4x4:4, 802.11ac Wave 2 (Software Defined Radio) |
| Optional / Notes | Supports TurboXpress mode to program radios for additional 5 GHz capacity; multiple external antenna options available separately; documented variant part number XH2-240-US. |
| Antenna Connectors | 8 N‑Type Female (4 per radio) |
| Dimensions (WxDxH) | 11.75 x 8.75 x 4.0 in (29.84 x 22.22 x 10.6 cm) |
| Wireless Standards | IEEE 802.11ac Wave 2 IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n 802.11d 802.11e 802.11h 802.11i 802.11j 802.11k 802.11u 802.11w |
| Radio Configuration | Dual software‑defined radios (2.4 GHz and 5 GHz) with capability to program radios for additional 5 GHz capacity |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Included Accessories | None specified; external antennas not included |
| Management Interfaces | Web interface (HTTP/HTTPS) Command line interface (CLI) SNMP (v1, v2c, v3) Telnet (RFC 854) XMS‑Cloud / XMS‑Enterprise |
| Maximum WiFi Backhaul | 3.47 Gbps (documented maximum backhaul throughput) |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Environmental Features | Hardened/sealed enclosure for rain, dust, humidity, temperature extremes; support for radio power scheduling and ultralow power mode |
| Regulatory & Compliance | CE, EN 300 328, EN 301 893, EN 301 489 series, EN55022/EN55024, FCC Part 15 (with DFS where applicable), ICES, UL/CAN/IEC 60950 safety listings, RoHS, REACH |
| Manufacturer Part Number | XH2-240-US |
| Total Radios (incl. BLE) | 2 Wi‑Fi + BLE (per vendor documentation) |
| Maximum Power Consumption | 25.5 W |
| Security & Authentication | WPA, WPA2 (IEEE 802.11i / RSN) IEEE 802.1X Web page authentication / captive portal Xirrus EasyPass access services (SSO, BYOD, guest) TLS/SSL, RADIUS accounting/authentication support, EAP types per vendor documentation |
| Network / Protocol Support | IPv4 / IPv6 dual‑stack client support DHCP, DNS, SNTP IEEE 802.1Q VLAN IEEE 802.3ad Link Aggregation IEEE 802.1d Spanning Tree IEEE 802.1p QoS |
| Supported Channels (5 GHz) | U‑NII-1, U‑NII-2A (DFS), U‑NII-2C (DFS), U‑NII-3 (specific channels per regional regulation) |
| Supported Channels (2.4 GHz) | Channels 1–14 |
| Maximum WiFi Bandwidth (Aggregate) | 6.9 Gbps |
| Maximum Associated Devices / Clients | 512 |
| Ingress Protection / Environmental Rating | IP67, NEMA 4X compliant |
Cambium XH2-240 Xirrus Outdoor 4x4 AP. Dual 11ac Wave 2 SDR radios (5GHz/2.4GHz). External antennas
