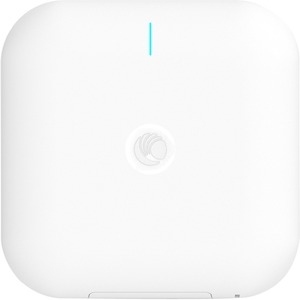

Cambium XV3-8 Tri-Radio WiFi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5GHz WLAN AP, scan radio, BLE. RoW XV3-8X00A00-RW

SKU
408713
MPN
XV3-8X00A00-RW
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$1,522.00
Buy Now And Earn 1522 Reward Points!

2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet - Wall Mountable, Ceiling Mountable, T-bar Mount

General Information

Manufacturer
Cambium Networks
Manufacturer Part Number
XV3-8X00A00-RW
Manufacturer Website Address
http://www.cambiumnetworks.com
Brand Name
Cambium Networks
Product Model
XV3-8
Product Name
XV3-8 Wi-Fi 6 Access Point
Marketing Information

Designed for High Density and Edge Services

The XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4×4 plus one 2.4 GHz 4×4, or the two 5 GHz radios can be combined into a single 5 GHz 8×8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.

Optimized Wi-Fi for All Client Devices

For networks dominated by legacy 802.11ac client devices, the dual 5 GHz 4×4 mode will double network capacity to maintain high-bitrate services as density increases. As the devices migrate to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR can be quickly converted into full 8×8 operating mode via a simple configuration change. No firmware change is required to support this mode.

Cloud and On-Premises Management

XV3-8 operates with either the Cambium XMS cloud management or cnMaestroTM cloud and on-premises. Choose the cloud management system that best fits your business and use the latest technology from Cambium Networks.

Product Type
Wireless Access Point

Technical Information

Wireless LAN Standard
802.11ax
Frequency Band
2.40 GHz

5 GHz

6 Gbit/s

Yes

Yes

Yes

WPA2

WPA2-ENT

WPA3

AES

WPA-PSK

Interfaces/Ports

Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
2
USB
Yes
Management Port
Yes

Physical Characteristics

Form Factor
Wall Mountable
Form Factor
Ceiling Mountable
Form Factor
T-bar Mount
Height
42 mm
Width
235 mm
Depth
235 mm
Weight (Approximate)
1.25 kg

Warranty

Limited Warranty
Lifetime
