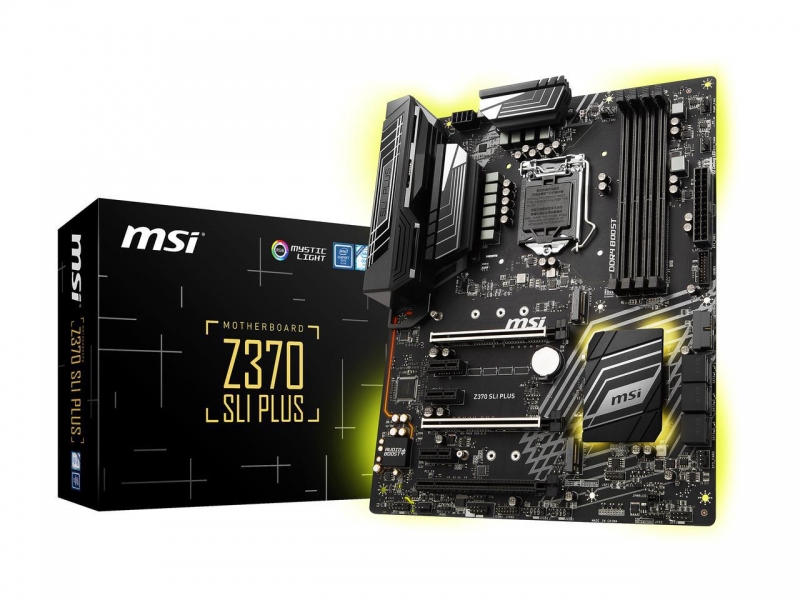

Msi Z370 Sli Plus Atx Motherboard Z370 Sli Plus

SKU
254244
Brand
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
  • Supports 8th Gen Intel® CoreTM / Pentium® Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4000+(OC) MHz
  • DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
  • AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive audio experience
  • Mystic Light and Mystic Light Sync: Personalize your PC with 16.8 million colors / 17 effects controlled in one click with the Mystic Light APP or a mobile device.
  • MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA 2-Way SLI™ & AMD 3-Way Crossfire™
  • Professional IO cover & heatsink: Stunning looks, protecting the I/O ports
  • EZ Debug LED: Easiest way to troubleshoot
  • Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
  • Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C
  • PCI-E Steel Armor:Protecting VGA cards against bending and EMI
  • X-Boost: Great tool to boost your USB & Storage performance
  • Double ESD Protection: Double layer grounding motherboard mounting holes
  • Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
  • VR Ready: Best virtual reality game experience without latency, reduces motion sickness

Z370 SLI PLUS
MAXIMUM CLASS


1 DVI-D
2 Lightning USB 3.1 Gen2
3 HDMI
4 4x USB 3.1 Gen1
5 Golden audio jacks with S/PDIF
Z270 Gaming M3
6 Professional I/O cover
Stunning looks, protecting the I/O ports
7 Heavy plated heatsinks
Leading heatsinks design, for maximum cooling
8 Mystic Light RGB heatsink
Change up to 16.8 million colors & 17 LED effects
9 DDR4 Boost
Optimized traces and isolated memory circuitry
10 NPCI-E Steel Armor
Protecting VGA cards against bending and EMI
11 Twin Turbo M.2
NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
12 Audio Boost 4 with amplifier
Optimized audio using the best components, 120 dB SNR 32-bit


CUSTOMIZE YOUR RIG


Personalize your PC with 7 colors and 5 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
Z370
Z370 Z370
Works with certified Mystic Light Sync products:
Z370Z370

DESIGNED FOR UNLIMITED PERFORMANCE




MSI Z370 motherboards are optimized to maximize the performance on the 8th Gen Intel® processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.




Z370Z370





UNMATCHED MEMORY PERFORMANCE




MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.

Z370





BEST COMPATIBILITY


Z370

Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

Z370





EXTREME STORAGE PERFORMANCE: 2 X TURBO M.2




Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection! You can even mix up devices and set up RAID easily using M.2 Genie, for even better performance.

Z370Z370





MAXIMIZE YOUR USB DEVICE PERFORMANCE


Z370

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

Z370Z370Z370





PROFESSIONBAL SOUND QUALITY


Z370

Like a dedicated sound card Audio Boost offers a HD audio processor, a dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest HI-FI audio signal.

Z370


IMMERSE YOURSELF INTO VIRTUAL WORLDS




Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.

Z370Z370

Model

Brand
MSI
Model
Z370 SLI PLUS

Supported CPU

CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs

Chipsets

Chipset
Intel Z370

Onboard Video

Onboard Video Chipset
Supported only by CPU with integrated graphic

Memory

Number of Memory Slots
4×288pin
Memory Standard
DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel

Expansion Slots

PCI Express 3.0 x16
3 x PCI Express 3.0 x16
PCI Express x1
3 x PCIe 3.0 x1 slots

Storage Devices

SATA 6Gb/s
6 x SATA 6Gb/s ports*
* The SATA1, SATA5 and SATA6 ports will become unavailable with some conditions of M.2 devices. Please refer the manual for M.2 & SATA combination table.
M.2
2 x M.2 slots (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
- M2_1 slot supports 2242/2260/2280/22110 storage devices
- M2_2 slot supports 2242/2260/2280 storage devices
- Supports Intel Optane Memory Ready for all M.2 slots
** The Turbo U.2 Host Card is not included, please purchase separately.
SATA RAID
0/1/5/10

Onboard Audio

Audio Chipset
Realtek ALC1220
Audio Channels
7.1 Channels

Onboard LAN

LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x DVI-D port
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port
4 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.0
2 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
5 Ports

Internal I/O Connectors

Onboard USB
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x RGB LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Clear CMOS jumper

Physical Spec

Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Features

Features
Supports 8th Gen Intel Core / Pentium Celeron processors for LGA 1151 socket.

Supports DDR4 Memory, up to 4000+(OC) MHz.

DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.

AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive audio experience.

Mystic Light and Mystic Light Sync: Personalize your PC with 16.8 million colors / 17 effects controlled in one click with the Mystic Light APP or a mobile device.

MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA 2-Way SLI & AMD 3-Way Crossfire.

Professional IO cover & heatsink: Stunning looks, protecting the I/O ports.

EZ Debug LED: Easiest way to troubleshoot.

Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready.

Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C.

PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

X-Boost: Great tool to boost your USB & Storage performance.

Double ESD Protection: Double layer grounding motherboard mounting holes.

Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency.

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function.

VR Ready: Best virtual reality game experience without latency, reduces motion sickness.
