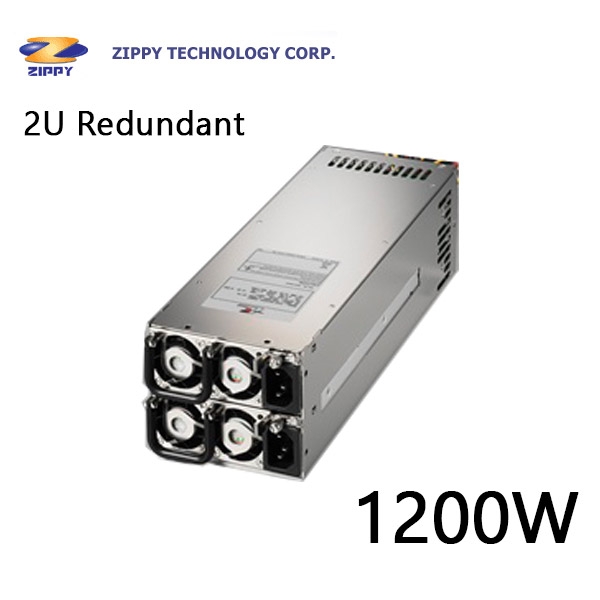

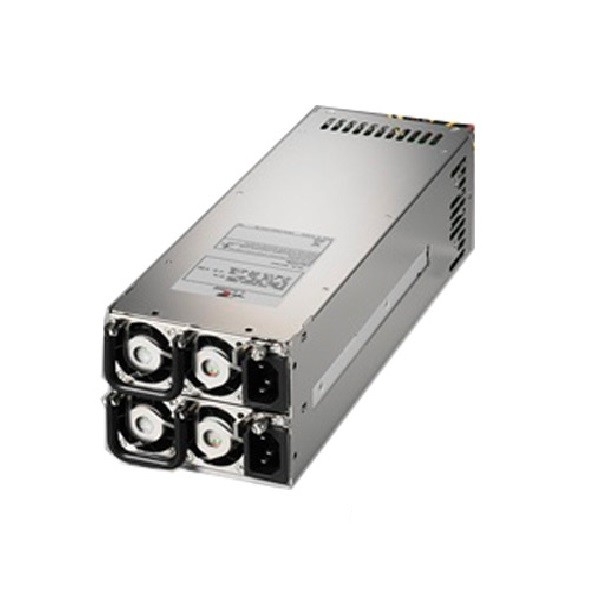

Zippy 2u Redundant Psu 1200w G1w2-5c00v3v Psuzipg1w25c00v3v

SKU
259193
Brand
MPN
PSUZIPG1W25C00V3V
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,077.00
Buy Now And Earn 1077 Reward Points!
Featurs
  • TEMPERATURE RANGE:OPERATING 0℃~40℃, STORAGE -20℃~80℃
  • HOLD UP TIME:12mS MIN.
  • DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE
  • EFFICIENCY:>80% AT 115V, 20%~100% MAX LOAD.
  • POWER GOOD SIGNAL:ON DELAY 100mS TO 500Ms
  • OVER POWER PROTECITON: 110~160%
  • OVER VOLTAGE PROTECTION:+3.3V→3.7V~4.1V,+5V→5.7V~6.2V ,+12V→13.3 V~14.3V
  • OVER CURRENT PROTECTION: +5V→39~54A, +12V→107~147A, +3.3V→39~54A
  • SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
  • REMOTE ON / OFF CONTROL
  • REMOTE SENSING DESIGN
  • BALANCE LOAD SHARING DESIGN
  • HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
  • ISOLATION: BUILT-IN THE POWER MODULE
  • FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
  • EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B
  • MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)
  • SAFETY:TO MEET UL, TUV, CB IEC 60950

pecification

  • VOLTAGE: 100~240VAC / 200~240VAC FULL RANGE(WITH ± 10% TOLERANCE, OUTPUT 1010W/1200W)
  • FREQUENCY: 47~63HZ
  • INPUT CURRENT (PER POWER MODULE):15/7A FOR 115/230VAC
  • INRUSH CURRENT (PER POWER MODULE):60/80A MAX. FOR 115/230VAC (25℃)

Dimension

300x101.2x84(mm)
11.81x3.98x3.31(inch)
