3m Lc-lc Om1 Multimode Fibre Optic Cable: Salmon Pink Fl.om1lclc3mp

Rated /5 based on customer reviews

SKU: 265593

Brand: 3m

Manufacturer Link

MPN: FL.OM1LCLC3MP

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

$20.00
Buy Now And Earn Reward Points!
Qty:

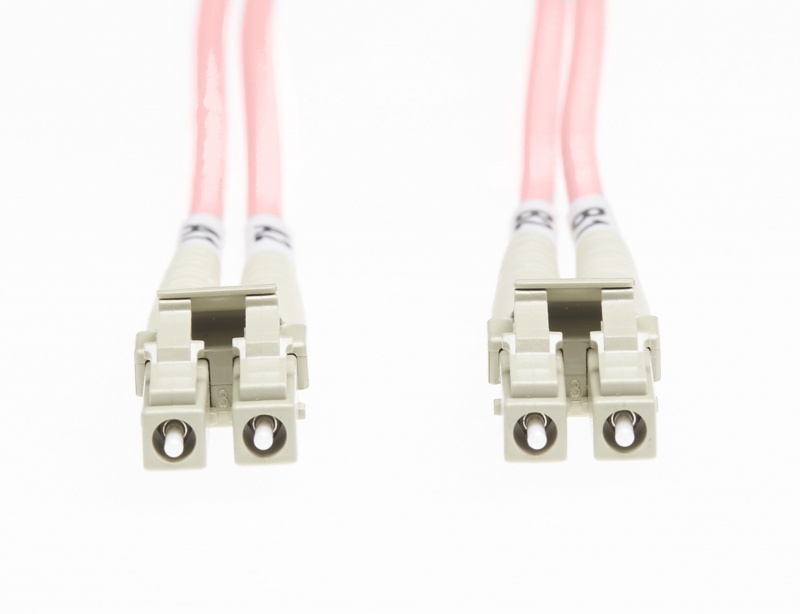

3m LC-LC OM1 Multimode Fibre Optic Cable Salmon Pink.

Fibre patch cables are the thin, flexible fibres of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.

4Cabling’s OM1 Multimode Fibre optic cables provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. 4Cabling fibre optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards.

4Cabling Multimode Fibre Optics leads is the cost-effective way of your cabling solution.



2mm OVERSLEEVING. WARRANTY 3 YEARS



Application:

  • Cross-connect patching
  • Backbone application in building
  • Termination enclosure for equipment patching
  • Equipment to equipment patching



Features:

  • Conforms to ISO/ IEC 11801
  • Individually labelled for lead tracing
  • Low smoke zero halogen (LSZH) cable
  • Manufactured with stringent quality control
  • All leads are supplied with a factory test report
  • Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAD
  • Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
  • All ends are polished and individually inspected for correct polishing
  • Supports high-speed multi-channel data, voice & video applications



Fibre Specifications:

  • OM1 Multimode
  • LC-LC Fibre Termination
  • Length: 3m
  • Colour: Salmon Pink
  • 2mm Oversleeving
  • Warranty 3 Years
Specifications
Crush (N) 1000
Simplex/Duplex Duplex
Strength Member Aramid
Typical Insertion Loss <0.20 dB
Max. Insertion Loss <0.25 dB
Tensile Load 7.0kg
Bend Radius 3.8cm
Operating Temperature (C°) minus 20° to 60°
Attenuation (dB) 2.8 @ 850nm/0.8 @ 1310nm
Bandwidth OFL (MHz x km) 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm
IL RL<0.25dB
UPC Singlemode >55dB
UPC Multimode RL>36dB
APC RL>60
