Hx Arm With Very Heavy Duty Pivot Desk Mount Mbk 45-693-224
SKU
422957
Brand
MPN
45-693-224
Warranty
Standard Manufacturer's Warranty
$499.00
Buy Now And Earn 499 Reward Points!

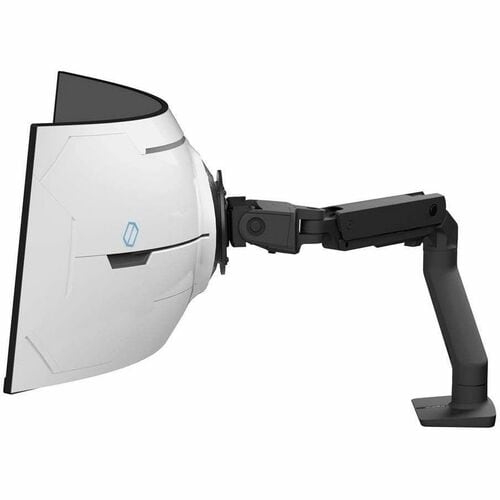

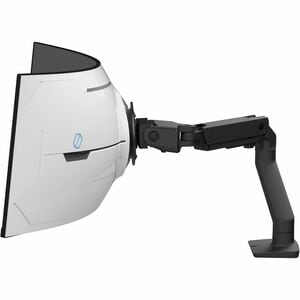

Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"-13.8" (23-35 cm) deep and 28.7-37.5 lbs (13-17 kg), like the Samsung® 57" Odyssey G9 Gaming Monitor.
| Application/Usage | Desk, Gaming, Office |
| Product Type | Mounting Arm |
| Device Supported | Curved Screen Display, Monitor |
| Features | Cable Management, Compact, Foldable Arms, Grommet, Heavy Duty, Pivot, Retractable, Rotate, Tilt |
| Maximum Load Capacity | 17.01 kg |
| Brand Name | Ergotron |
| Maximum Screen Size Supported | 144.8 cm (57") |
| VESA Mount Compatible | Yes |
| Product Family | HX |
| Mounting Pattern | 100 x 100, 75 x 75 |
| Product Color | Matte Black |
| Color Family | Black |
| Minimum Load Capacity | 13.02 kg |
| Mount Function | Desktop, Cable Management, Adjustable, Pan, Tilt, Rotate |
| Mount Surface | Desk |
| Manufacturer Part Number | 45-693-224 |
| Manufacturer Website Address | http://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx |
| Manufacturer | Ergotron, Inc |
| Product Name | HX Desk Monitor Arm with VHD Pivot (Matte Black) |
| Product Series | HX |
| Package Contents | • HX Desk Monitor Arm with VHD Pivot (matte black) • Arm • Extension • VHD pivot • Desk clamp • Grommet mount • Mounting hardware |
| Compatibility | Samsung - Odyssey Neo G9 57" Gaming Monitor |
| Brand Compatibility | Samsung |
| Weight (Approximate) | 8.07 kg |
| Form Factor | Desk |
| Minimum Tilt Angle | 20° |
| Maximum Tilt Angle | -5° |
| Height Adjustable | Yes |
| Minimum Rotate Angle | -10° |
| Maximum Rotate Angle | 10° |
| Maximum Pan Angle | 180° |
| Shipping Dimensions | Height 20, Width 34, Length 52, Shipping Weight 10.3 KG |
HX ARM WITH VERY HEAVY DUTY PIVOT DESK MOUNT MBK
