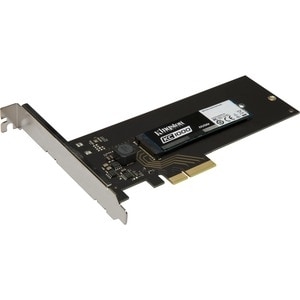

Kingston 480gb Kc1000 Nvme Pcie M.2 W/hhhl Aic Skc1000h/480g
KC1000 NVMe PCIe SSD
Kingston’s KC1000 solid-state drive is a high-performance PCIe NVMe™ drive that is available in either a standard M.2 2280 form factor or as a half-height, half-length add-in card. KC1000 uses native OS NVMe drivers, is available in a range of capacities from 240GB to 960GB1 and is backed by a limited five-year warranty2 and legendary Kingston support.
Features
- High-performance, next-generation PCIe NVMe SSD
- NVMe — Designed for SSDs, not legacy storage products
- Form factor choices to fit a wide range of systems
Specifications
Form factor: M.2 2280
Interface:
NVMe™ PCIe Gen 3.0 x 4 Lanes
Capacities1: 240GB, 480GB, 960GB
Controller: Phison PS5007-E7
NAND: MLC
Sequential Read/Write3:
240GB — up to 2700/900MB/s
480GB, 960GB — up to 2700/1600MB/s
Maximum 4k Read/Write3:
240GB — up to 225,000/190,000 IOPS
480GB, 960GB — up to 290,000/190,000 IOPS
Random 4k Read/Write:
240GB, 480GB — up to 190,000/160,000
IOPS
960GB — up to 190,000/165,000 IOPS
PCMARK® Vantage HDD Suite Score: 150,000
Total Bytes Written (TBW)4:
240GB — 300TB and .70 DWPD5
480GB — 550TB and .64 DWPD5
960GB — 1PB and .58 DWPD5
Power Consumption:
.11W Idle / .99W Avg / 4.95W (MAX) Read / 7.40W (MAX) Write
Storage temperatures: -40°C ~ 85°C
Operating temperatures: 0°C ~ 70°C
Dimensions: 80mm x 22mm x 3.5mm (M.2)
180.98mm x 120.96mm x
21.59mm (with HHHL AIC – standard bracket)
181.29mm x 80.14mm x 23.40mm (with HHHL AIC – low-profile bracket)
Weight:
10g (M.2)
76g (with HHHL AIC – standard bracket)
69g (with HHHL AIC – low-profile bracket)
Vibration operating: 2.17G Peak (7-800Hz)
Vibration non-operating: 20G Peak (20-1000Hz)
MTBF: 2,000,000
Warranty/support:
Limited 5-year warranty with free technical support
| Marketing Text | Kingston's KC1000 Solid-state Drive is a high-performance PCIe NVMe solution that is over 2x faster than SATA-based SSDs and 40x faster than a 7200RPM hard-disk drive. |
| PI Date | Jan 2018 |
| Brand Name | Kingston |
| Manufacturer Web Site | http://www.kingston.com |
| Product Type | Solid State Drive |
| Form Factor | M.2 |
| Storage Capacity | 480GB |
| Interface | PCI Express 3.0 x4 |
| Sequential Read Speed | 2700Mbps |
| Sequential Write Speed | 1600Mbps |
| Random Read Speed (IOPS) | 190K |
| Random Write Speed (IOPS) | 160K |
| NAND Flash Type | MLC |
| Operating Temperature | 0 to 70°C |
| MTBF | 2000000hours |
| Other Features | * Controller: Phison PS5007-E7 * High-performance, next-generation PCIe NVMe SSD |
