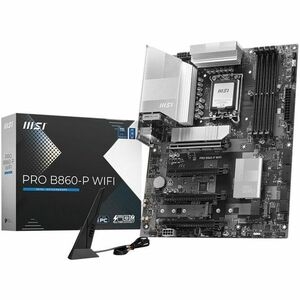

Msi B860-P WIFI B860-P WIFI
PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel®Core™ Ultra processors.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
12+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With 8+4 pin power connectors, PRO B860-P WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Support Intel®Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Audio | |
| Audio Channels | 7.1 |
| Technical Information | |
| AI-powered | Yes |
| Video | |
| Onboard Video | CPU Dependent Video |
| Miscellaneous | |
| Package Contents |
|
| Brand Compatibility | Intel |
| I/O Expansions | |
| Number of PCI Express x16 Slots | 4 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express 5.0 | |
| Total Number of PCI Express Slots | 4 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
| Network & Communication | |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bluetooth Standard | Bluetooth 5.4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
| Product Color | Silver |
| Color Family | Silver |
| Processor & Chipset | |
| Processor Supported | Core Ultra |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| I/O Controller | |
| RAID Levels | 10 |
| 5 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| General Information | |
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | B860-P WIFI |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | PRO B860-P WIFI |
| Product Name | PRO B860-P WIFI Gaming Desktop Motherboard |
| Product Line | Pro |
| Brand Name | MSI |
| Interfaces/Ports | |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 4 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 5600 MHz |
| 7200 MHz | |
| 8800 MHz | |
| 6400 MHz | |
