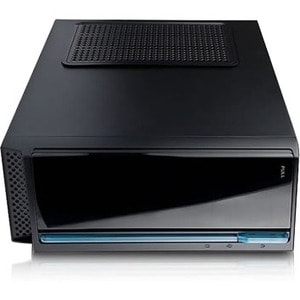

In Win Bp659 Mini-itx Sff 300w Slim Black Bp659b30p3y

SKU
218037
Brand
MPN
BP659B30P3Y
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$162.00
Buy Now And Earn 162 Reward Points!

Features

• Easy Integration

Three Independent DisplaysThe BP Series was designed to offer quick integration. No peripheral carrier or bezel must be removed for assembly. This allows really quick assembly and reduces costs.


  • Antenna Mounting Hole Ready for WLAN Card


Front USB 3.0 Ports


• Supports Mini-ITX Motherboard

Front USB 3.0 PortsSupports Mini-ITX motherboards for a wide choice of system features and price points.



• Standard TFX 12V Power Supply

Front USB 3.0 PortsInternal TFX 200W Power supply equipped with a temperature control sensor that reduces noise allows for quiet operation.


• Standard Components

Front USB 3.0 PortsThe BP Series supports standard size components (5.25” & 3.5”). The use of standard components helps to maximize configuration choices and minimize product costs.



• Tool-Free

Front USB 3.0 PortsOptional screwless designs - ODD bay and side panel for easy assembly.


• Optimal Thermal Performance

Front USB 3.0 PortsAn ultra silent 80 mm case fan with Intel Thermally Advantaged Small Chassis 1.0 vents help to improve the airflow and optimize thermal performance, keeping temperatures below 39°C.

Case Size S.F.F Slim Chassis (Ultra Small Form Factor)
Color
External Drive Bays 5.25" x 1
Internal Drive Bays 3.5" HDD (1") x 1
3.5" HDD (0.8") x 1
Front Ports USB 2.0 x 2, HD Audio
Dimensions (H x W x D)
w/o Front Panel
265 x 100 x 310 mm (8.2L)
10.4"x 3.9" x 12.2"
MB Form Factor Mini-ITX
I/O Expansion Slots Low Profile Card Slot x 1
Power Supply Standard TFX 12V, 200W
Thermal Solution 80 x 80 x 25 mm Top Fan
Safety Meets RoHS, CE and FCC Class B Requirements
Security Padlock Loop / Kensington Slot
Optional ‧IEEE 1394
‧eSATA / USB 2.0 x 2 (at Rear Panel w/ Module)
‧Removable Air Filter
‧Chassis Intrusion Switch
‧Screwless ODD Bay Clips
‧Screwless Side Panel Clips
‧USB 3.0 x 2
‧3.5" to 2.5" HDD/SSD Bracket
