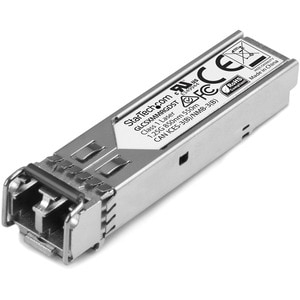

Startech Cisco Glc-sx-mm-rgd Compatible Sfp - Gigabit Fiber 1000base-sx Sfp Transceiver Module -

SKU
250692
Brand
MPN
GLCSXMMRGDST
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$98.00
Buy Now And Earn 98 Reward Points!

QUICK OVERVIEW

MM LC - 550m (1804 ft) - 850nm - Mini-GBIC GLCSXMMRGDST

This StarTech.com Gigabit fiber SFP is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Cisco® switches and routers that support the GLC-SX-MM-RGD transceiver module, as well as other major brands of networking equipment.

This 1000Base-SX SFP delivers Gigabit connectivity over multimode fiber cable, with a range of up to 550 m (1804 ft.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.

Built for reliable network performance

This multimode SFP transceiver is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

Fully compatible with Cisco and other major brands

The MM Gigabit SFP is engineered to the highest quality standards and is 100% Cisco compatible, equivalent to the Cisco GLC-SX-MM-RGD SFP transceiver. The StarTech.com SFP transceiver is configured and fully tested to ensure it works seamlessly with Cisco or other major brands of networking equipment.

You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.

Convenient and scalable

Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that’s compatible with a multitude of Gigabit networking devices.

Ideal for use in switches, routers, and other networking equipment, the SFP provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SFP supports multimode fiber cable with a maximum distance of 550 m or 1804 ft., and maximum data rates of up to 1.25Gbps. This GbE fiber SFP also supports Digital Diagnostics Monitoring (DDM / DOM).

You can count on GLCSXMMRGDST for reliable performance, backed by a lifetime warranty and free lifetime technical support.

Connector(s)
Local Unit ConnectorsFiber Optic LC Duplex Female
Environmental
Humidity5~95% RH
Operating Temperature-40?C to 85?C (-40?F to 185?F)
Storage Temperature-40?C to 85?C (-40?F to 185?F)
Hardware
Compatible BrandCisco
Industry StandardsIEEE 802.3z 1000BASE-SX
Packaging Information
Shipping (Package) Weight0 kg [0.1 lb]
Performance
Compatible Networks1000 Mbps (1 Gbps)
DDMYes
Fiber Operating ModeFull-Duplex
Fiber TypeMulti Mode
Max Transfer Distance550 m (1804 ft)
Maximum Data Transfer Rate1.25 Gbps
MTBF3,381,761 hours
Wavelength850nm
Physical Characteristics
ColorSilver
Enclosure TypeAluminum
Product Height12.5 mm [0.5 in]
Product Length56.6 mm [2.2 in]
Product Weight14 g [0.5 oz]
Product Width13.7 mm [0.5 in]
Special Notes / Requirements
NoteFor use in Gigabit fiber networking equipment and media converters
System and Cable RequirementsMSA or Cisco compliant SFP port
What's in the Box
Included in PackageSFP transceiver
Marketing TextThis StarTech.com Gigabit fiber SFP is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance.
PI DateMay 2017
Brand NameStartech
Manufacturer Web Sitehttp://www.startech.com/
Product TypeTransceivers Module
Cable TypeOptical Fiber
Connector 1 x LC
Data Transfer Rate1.25Gbps
Maximum Transmission Distance550meter
Slot TypeSFP
Wavelength850nm
Depth (mm)56.6
Height (mm)12.5
Width (mm)13.7
Weight (Grams)14.0
Other Features* Delivers reliable Gigabit Ethernet connections for 1000Base-LX compliant networks
* 100% Cisco compatible SFP, equivalent to Cisco GLC-LX-SM-RGD
* Backed by lifetime warranty and free lifetime technical support
