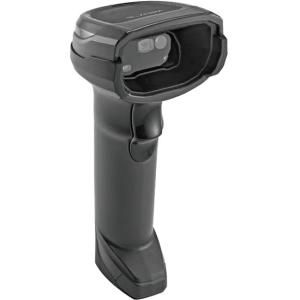

Ds8178-Sr Black Fips Standard Cradle USB DS8178-SR7U2100SFW

SKU
250546
Brand
MPN
DS8178-SR7U2100SFW
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$1,185.00
Buy Now And Earn 1185 Reward Points!

QUICK OVERVIEW

USB CABLE, CR8178-SC100F4WW CRADLE DS8178-SR7U2100SFW
The ultimate in performance, innovation and manageability

Checkout is the last chance to leave your shoppers with a good impression - and the quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. If cashiers need to scan barcodes multiple times or enter unreadable barcodes manually, your checkout lanes can back up quickly, resulting in long lines, long wait times and cashiers that need to focus on

ringing up merchandise as quickly as possible instead of focusing on shoppers to provide a better checkout experience. Now, you can give every shopper the ultimate last impression with the DS8100 Series handheld imager. The DS8100 Series rises above conventional imagers, delivering unprecedented scanning performance on 1D and 2D barcodes, innovative productivity enhancing tools, including swappable power sources - a PowerPrecision+ battery or PowerCapTM capacitor1 - plus unrivaled manageability tools to keep your scanners up, running and in the hands of your cashiers. Keep checkout lines moving and cashiers free to deliver a more personal checkout experience with the DS8100 Series - because when it comes to the checkout experience, only the best will do.

Unprecedented Performance

Unparalleled performance on virtually every barcode in any condition

Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes - including

dense, poorly printed, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays.

Superior scan range

A scanning range up to 24 in./61 cm, a high resolution imaging sensor and a bright "aiming spot" improve checkout speed. Now, cashiers in busy checkout environments can easily scan items in a customer's shopping cart - without leaving the cash-wrap.

Innovation beyond the barcode

Swappable power options reduce your investment risk Two interchangeable power options are available to power your devices: a PowerPrecision+ battery or a PowerCap capacitor. You can swap power options at any time on all models, right in your facility - no need to purchase separate battery-free and battery powered devices. And managing your power sources is easy. Since the PowerPrecision+ battery and PowerCap capacitor can report their model and serial numbers, you'll always know which power source is in each scanner.

On a single charge, the advanced PowerPrecision+ battery provides over three around-the-clock days of continuous scanning, plus a wealth of metrics for better battery management.
Application/Usage Retail, Transportation, Hospitality, Light/Clean Manufacturing, Logistics, Government, Loyalty Program
Product Type Barcode Scanner Kit
Connectivity Technology Wireless
Form Factor Handheld
Brand Name Zebra
Scanning Distance 934.72 mm
Bluetooth Yes
Scanner Range Standard Range
Scan Pattern Linear
Image Sensor Type Imager
Product Family DS8100
Product Color Twilight Black
Color Family Black
Ingress Protection (IP) Rating IP42
Cable Type Included USB
Scanning Capability 2D, 1D
Manufacturer Part Number DS8178-SR7U2100SFW
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model DS8178-SR
Product Name DS8178-SR Barcode Scanner Kit
Product Series DS8100
Environmentally Friendly Yes
Weight (Approximate) 235.3 g
Height 167.6 mm
Width 66 mm
Depth 106.7 mm
Barcode Symbology Supported 1D: • Code 39 • Code 128 • Code 93 • Codabar/NW7 • Code 11 • MSI Plessey • UPC/EAN • I 2 of 5 • Korean 3 of 5 • GS1 DataBar • Base 32 (Italian Pharma) 2D: • PDF417 • Micro PDF417 • Composite Codes • TLC-39 • Aztec • DataMatrix • MaxiCode • QR Code • Micro QR • Chinese Sensible (Han Xin) • Postal Codes
Drop Specification Designed to withstand 50 drops at 6.0 ft./1.8 m to concrete
Field of View (Horizontal) 42°
Field of View (Vertical) 28°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 96840 lux
Minimum Print Contrast 16%
Minimum Element Resolution (Code 39) 0.08 mm
Maximum Element Resolution (Code 39) 0.51 mm
Minimum Element Resolution (DataMatrix) 0.19 mm
Maximum Element Resolution (DataMatrix) 0.25 mm
Minimum Element Resolution (PDF417) 0.13 mm
Maximum Element Resolution (PDF417) 0.17 mm
Shipping Dimensions Height 17.2, Width 26.8, Length 31.4, Shipping Weight 0.9 KG
DS8178-SR BLACK FIPS STANDARD CRADLE USB
