Benefits
Perfect dual-mounting solution for monitors with screen sizes of 17" to 24"
Attaches to wide variety of mounts using a 50 x 50 mm or 100 x 100 mm hole pattern
Robust design ensures many years of service
Conceal and organize cables: Display cables can be neatly routed behind displays
Tech Specs
Screen
17"?26"*
Capacity
? 36 lbs†
16.4 kg
Lift
?
Tilt
?
Pan
?
Rotation
360?
VESA
MIS-D
Part Number: 97-783

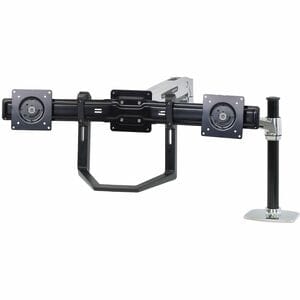

Description: Dual Monitor & Handle Kit (black)
Includes bow, two mounting brackets, handle, mounting hardware
* Outside width of monitor should be 14" to 24.5" (35 to 62 cm). This range accommodates most 17" to 24" displays as well as some displays as large as 26". If the outside width is less than 14" (35 cm), a small gap will be present between the two displays. Displays with an outside width greater than 24.5" (62 cm) are not compatible
† Combined weight of displays can be no more than 36 lbs (16.4 kg). This kit adds an additional 6 lbs (2.7 kg) to your mounting solution. Your mounting solution?s weight capacity must be reduced by 6 lbs (2.7 kg) when using standard monitors less than or equal to 2.5" (64 mm) thick. Additional reduction may be required if monitors are greater than 2.5" (64 mm) thick. Exception: When used as a replacement bow on WorkFit Dual products, there is no reduction in capacity
Attaches to mounts with four-hole interface of 50 x 50 mm or 100 x 100 mm
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
This kit can be installed and used without the included handle
Product Dimensions: 4"H x 29.1"W x 1.5"D (10 x 74 x 38 cm)
Shipping Dimensions: 31" x 13.5" x 7" (79 x 34 x 17.5 cm)
Shipping Weight: 8.4 lbs (3.8 kg)
Warranty: Five (5) years
