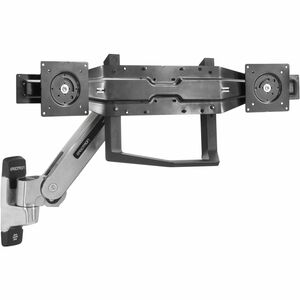

Dual Monitor & Handle Kit - for Interactive Arm
Convert a single-monitor mount so it holds two displays, or increase the size of compatible displays for your current dual-monitor solution. A handle is included to make repositioning of the screens easy.
Note: This kit is ideally suited to screens that are 23" or 24" in size. It can also be used with many 22" or 26" displays. See specifications for details.*
Dual Monitor & Handle Kit <span class="subT">- for Interactive Arm</span>

SKU: 97-718-009

Voordelen
Optimized for dual-mounting of 24" monitors
Attaches to wide variety of mounts using a 50 x 50 mm, 100 x 100 mm or 200 x 100 mm hole pattern
Robust design ensures many years of service
Conceal and organize cables: Display cables can be neatly routed behind displays
Technische specificaties
Schermgrootte
Schermgrootte
22"–26"*
Schermgewicht
Schermgewicht
? 36 lbs†
16.4 kg
Hoogte
Hoogte
—
Kantel
Kantel
—
Draai
Draai
—
Rotatie
Rotatie
360°
VESA®
VESA®
MIS-D
Part Number: 97-718-009
Description: Dual Monitor & Handle Kit for Interactive Arm (black)
Includes bow, two mounting brackets, handle, mounting hardware
* Outside width of monitor should be 21" to 24.5" (53 to 62 cm). This range accommodates 23" and 24" displays as well as some displays with screens as small as 22" or as large as 26". If the outside width is less than 21" (53 cm), a small gap will be present between the two displays. Displays with an outside width greater than 24.5" (62 cm) are not compatible
† Combined weight of displays can be no more than 36 lbs (16.4 kg). This kit adds an additional 6 lbs (2.7 kg) to your mounting solution. Your mounting solution’s weight capacity must be reduced by 6 lbs (2.7 kg) when using standard monitors less than or equal to 2.5" (64 mm) thick. Additional reduction may be required if monitors are greater than 2.5" (64 mm) thick. Exception: When used as a replacement bow on WorkFit Dual products, there is no reduction in capacity
Specially designed for use with Interactive Arms (45-296-026 or 45-304-026) but will also attach to other mounts with four-hole interface of 50 x 50 mm, 100 x 100 mm or 200 x 100 mm
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
This kit can be installed and used without the included handle
Product Dimensions: 4.6"H x 29.1"W x 1.5"D (11.7 x 74 x 38 cm)
Shipping Dimensions: 31.5" x 13.5" x 7" (80 x 34 x 17.5 cm)
Shipping Weight: 9.2 lbs (4.2 kg)
Warranty: Five (5) years
