Part Number: 45-383-026

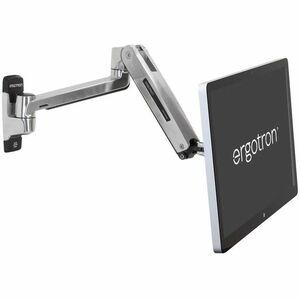

Description: LX HD Sit-Stand Wall Mount LCD Arm (polished aluminum)
Includes LX HD sit-stand arm, extension, wall-mount base, VESA brackets
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
* Weight Capacity: 14 to 30 lbs (6.3 to 13.6 kg). Monitor depth may affect weight capacity
† Monitor tilts 75? up and 5? down
‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately)
Cable management clips on the under side of the arm route and hide cords
Base includes theft-deterrent anchor holes for cable locks
NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight: 13.5 lbs (6.1 kg)
Shipping Dimensions: 22" x 11" x 7.5" (56 x 28 x 19 cm)
Shipping Weight: 13.5 lbs (6.1 kg)
Warranty: Ten (10) years
