Benefits
Position the TV at the most comfortable viewing angle
Most affordable solution for medium displays
Effortless adjustment, no knobs or levers necessary
Easy to install: do it yourself in less than 10 minutes!
Reliable solution for your flat panel investment
Integrated tilt lock-down feature
Tech Specs

Screen
? 42"

Capacity
? 50 lbs
22.7 kg

Lift
?

Tilt
20?

Pan
40?

Rotation
360? P/L

VESA
MIS-D/E/F*
Part Number: 45-269-009

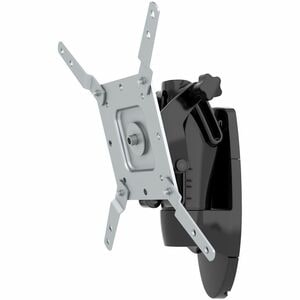

Description: LX HD Wall Mount Pivot (black)
Mounting Options: Attaches directly to sturdy vertical surfaces. Includes hardware for mounting to wood stud or concrete wall
Includes knob on pivot to lock position of tilt
Display depth greater than 4" (10 cm) may diminish capacity
UL Compliant: Has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)
* Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Shipping Dimensions: 9" x 9" x 3.9" (22.9 x 22.9 x 9.9 cm)
Shipping Weight: 4.55 lbs (2.1 kg)
Warranty: Five (5) years
