Part Number: 45-360-026

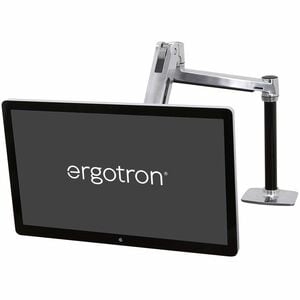

Description: LX Sit-Stand Desk Mount LCD Arm (polished aluminum)
Includes LX sit-stand arm, extension, desk clamp base, grommet-mount base, 48 cm pole, VESA brackets
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
* Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity
† Monitor tilts 70? up and 5? down
‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7?65 mm) wide and up to 2.5" (65 mm) thick
Cable management clips on the under side of the arm route and hide cords
To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm?s wall-mount base unused
NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight: 19.5 lbs (8.9 kg)
Shipping Dimensions: 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
Shipping Weight: 22 lbs (10 kg)
Warranty: Ten (10) years
