Benefits
20-inch (51 cm) height range allows users to move between sitting and standing positions during data entry
Extends keyboard up to 42" (107 cm); fold the keyboard back out of the way when not in use
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry?avoid repetitive-stress injuries while increasing comfort and productivity
Mouse tray slides out to left or right, depending on user preference
Patented CF motion technology provides premium ease-of-use adjustment
Cable management feature routes cables under the arm, out of the way
Ideal for space-constrained spaces?folds to within 5.8" (15 cm) of wall in storage position
Secure installation?locking connections between arm, extension and base
Passes Ergotron?s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Tech Specs

Screen
?

Capacity
? 5 lbs
2.2 kg

Lift
20"
51 cm

Tilt
†

Pan
360?**

Rotation
?

VESA
?
Part Number: 45-354-026

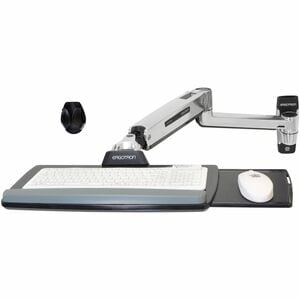

Description: LX Sit-Stand Wall Mount Keyboard Arm (polished aluminum)
Includes LX sit-stand arm, extension, wall-mount base, keyboard tray, slide-out mouse tray, wrist rest, mouse holder
Arm can be used with or without the extension
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
† When in down position, tray features a back-tilt of 5?; folds upright 90? in storage position
** Rotation Stop on wall-mount base limits turn of extension-base connection to 180?, preventing extension from contacting wall
Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket 97-091 (order separately)
Fasteners for direct attachment to wood/metal studs or concrete surface are not included?customer supplied
Base includes theft-deterrent anchor holes for cable locks
NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight: 14.4 lbs (6.5 kg)
Shipping Dimensions: 22.4" x 13.7" x 7.8" (57 x 35 x 20 cm)
Shipping Weight: 17.1 lbs (7.8 kg)
Warranty: Five (5) years
