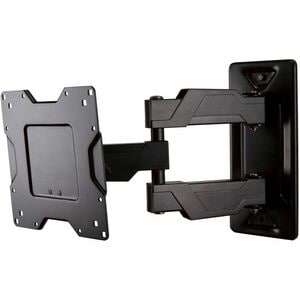

Ergotron Neo-flex Cantilever, Vhd Med/ Lrg Full Motion 45-385-223
Benefits
Tilt range up to 20º to reduce glare
Extends up to 14" (36 cm) from wall
Minimum profile is just 3.2" (8.2 cm)
Tilt and pan for maximum viewing flexibility
Includes adaptor for greater panel compatibility
Integrated cable management and covers guide and hide cords
Lift n? Lock™ allows you to easily attach your flat panel to the mount
Two-tone design and modern aesthetic complements newer panels
Built-in screen leveling
Extruded aluminum arms for maximum support in a lightweight mount
Arm design provides ample throw and nests centered on the wall
Part Number: 45-385-223
Description: Neo-Flex Cantilever Wall Mount, VHD, Very Heavy Duty (black)
Includes wall plate, cantilever arm, monitor plate, cable management, spider 46
adapter, complete hardware kit
† Screen Size is approximate only. Use Display Weight and VESA hole pattern to
determine compatibility, i.e., stated screen size may be exceeded as long as
display weight does not exceed weight capacity
* VESA Monitor Attachment: 200 x 100 mm to 600 x 400 mm
Minimum profile = 3.2" (82 mm); maximum extension = 14" (357 mm)
If adaptor is used, add .2" (6 mm) to minimum profile and maximum extension
Full compliance with RoHS directive
UL certified and listed to UL Standard 1678. This product has been tested to
hold four times its maximum load capacity per UL standard (do NOT exceed listed
weight capacity in actual use)
Shipping Dimensions: 14.2" x 12.8" x 4.5" (360 x 325 x 113 mm)
Shipping Weight: 11 lbs (5 kg)
Warranty: Three (3) years
Marketing Text | This low-profile cantilever mount fits most 37"ā63" flat panels up to 80 lbs (36.3 kg) and is well-suited for those applications where seamless integration counts most. |
PI Date | Jan 2015 |
Brand Name | Ergotron |
Manufacturer Web Site | http://www.ergotron.com |
Product Line | Neo Flex |
Product Type | Cantilever Mount |
Display Size Supported | 37 ā 63inch |
Weight Capacity | 36.3Kg |
Tilt | 20degree |
Pan | 180degree |
Color | Black |
Material | Aluminium |
Compliance Standards | * RoHS |
Other Features | * Extends up to 14" (36 cm) from wall * Minimum profile is just 3.2" (8.2 cm) * Integrated cable management and covers guide and hide cords * Lift nā Lock allows you to easily attach your flat panel to the mount * Two-tone design and modern aesthetic complements newer panels * Extruded aluminum arms for maximum support in a lightweight mount |
