Low .5" (13 mm) mounting profile
Lift n? Lock™ allows you to easily attach your flat panel to the mount
Locking system secures panel to mount
Simple to install and use
Includes complete hardware kit
Tech Specs
Screen
Screen
13"?32"†
Capacity
Capacity
? 40 lbs
18.13 kg
Lift
Lift
?
Tilt
Tilt
?
Pan
Pan
?
Rotation
Rotation
?
VESA
VESA
MIS-D/E/F*
Part Number: 97-589

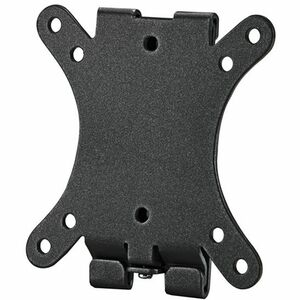

Description: Neo-Flex Wall Mount, ULD, Ultra Light Duty (black)
Includes wall plate, VESA adaptor, installation and attachment hardware
† Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
* VESA Monitor Attachment: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 100 x 200 mm or 200 x 200 mm
Profile off the wall = .5" (13 mm)
UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Shipping Dimensions: 11" x 6" x 1.3" (279 x 152 x 32 mm)
Shipping Weight: 1.6 lbs (.7 kg)
Warranty: Three (3) years
