SV Camera Shelf
Part Number: 97-776-194
Add the power of videoconferencing to a StyleView LCD cart to help create a mobile telemedicine solution. Simply install this shelf via the VESA plate and then attach a camera.
Benefits
Mounts a video or web camera above the monitor, facing forward
Perfect for telemedicine applications
Travels with the monitor through its entire range of motion
Easily attaches via the VESA interface. Bracket adjusts to the size of the monitor to place the camera just above the screen?s top bezel
Sturdy metal construction
Easy to clean surfaces
Works with StyleView LCD carts as well as StyleView wall mount systems
Specifications:
Part Number: 97-776-194
Description: SV Camera Shelf (silver)

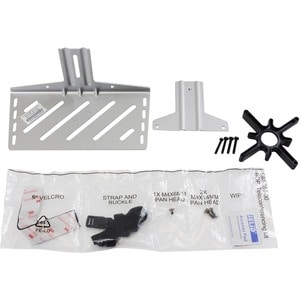

Includes shelf, bracket, Velcro, strap, mounting hardware
Camera and videoconferencing equipment are not included
Shelf dimensions = 8"W x 4"D (20 x 10 cm)
Shelf bracket attaches with monitor via top holes of VESA MIS-D 100 x 100 mm interface
Camera attaches to shelf with included Velcro or strap, or by using the camera?s tripod-mount interface if present
Attachment of this shelf impacts the overall weight capacity of the monitor arm or pivot. Follow the weight-capacity limitations to avoid any tip hazard when attaching to SV carts
Monitor weight limitations as follows:
SV41 and SV42 SLA without lock-out = 10 lbs / 4.5 kg; with lock-out of pivot = 16 lbs / 7.3 kg
SV42 LiFe without lock-out = 7 lbs / 3.2 kg; with lock-out of pivot = 16 lbs / 7.3 lbs
SV31, SV32 SLA, SV32 LiFe without lock-out = 12 lbs / 5.4 kg; with lock-out of pivot = 16 lbs / 7.3 kg
Note: SV carts with monitor arm do not include a lock-out feature. The lock-out feature is unique to SV carts with monitor lift pivot
Shipping Dimensions: 9.5" x 5" x 6" (24 x 13 x 15 cm)
Shipping Weight: 2 lbs (1 kg)
Warranty: Five (5) years
