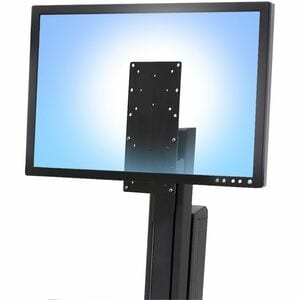

Ergotron Tall User Kit-wf-s And Wf-a Single Monitor 97-845
Benefits
Raises monitor screen by 4" (10 cm) or 6" (15 cm)
Simple installation
Durable solid steel construction
Tech Specs
Screen
Screen
†
Capacity
Capacity
? 29 lbs*
13.2 kg
Lift
Lift
?
Tilt
Tilt
?
Pan
Pan
?
Rotation
Rotation
0?‡
VESA
VESA
MIS-D
Part Number: 97-845
Description: Tall-User Kit for WorkFit Single (black)
Includes bracket, recess spacer, and screws for mounting to monitor
Raises monitor 4" (10 cm) or 6" (15 cm)
Compatible with WorkFit-S and WorkFit-A products
† Maximum screen size is dependent on product to which it is attached
* This Tall User Kit adds 1.0 lbs (.45 kg) to the mount: de-rate weight capacity
of accompanying mount by 1.0 lbs (.45 kg). Note: Monitor weight should never
exceed 29 lbs (13.2 kg)
‡ Pivot rotation (portrait/landscape) functionality is not available when the
Tall User Kit is installed
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75
x 75 mm)
Product Weight: 1.0 lbs (0.45 kg)
Shipping Dimensions: 10.75" x 4.75" x 1.13" (27 x 12 x 3 cm)
Shipping Weight: 1.4 lbs (0.64 kg)
Warranty: Five (5) years
| Marketing Text | Convert a WorkFit-S or WorkFit-A Single Display Workstation to reach the height requirements of taller users. Increases the distance between the keyboard and monitor to place the screen in a more comfortable position. |
| PI Date | Jan 2015 |
| Brand Name | Ergotron |
| Manufacturer Web Site | http://www.ergotron.com |
| Product Type | Tall-User Kit |
| Weight Capacity | 13.2Kg |
| Mounting Standards | VESA MIS-D |
| Weight (Kg) | 0.5 |
| Color | Black |
| Material | Steel |
| Compatibility | * Compatible with WorkFit-S and WorkFit-A products |
| Other Features | * Raises monitor screen by 4" (10 cm) or 6" (15 cm) * Durable solid steel construction * This Tall User Kit adds 1.0 lbs (.45 kg) to the mount: de-rate weight capacity of accompanying mount by 1.0 lbs (.45 kg). Note: Monitor weight should never exceed 29 lbs (13.2 kg) |
| Warranty Information | 5 Year |
