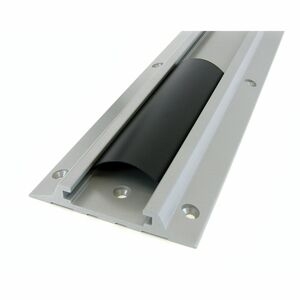

26" Wall Track
Part Number: 31-017-182

Wall Track is a low-cost, zero-footprint mounting system that attaches to most vertical surfaces. It accommodates an entire computer workstation.
Separately-ordered brackets are required to attach components to Wall Track (view + Accessories). The height of components can be adjusted by loosening set-screws on these brackets.

26

Benefits
Acts as a common interface for Wall Mount Arms and CPU Holders; accommodates an entire computer system.
Strengthens installation by distributing weight over a larger surface area.
Sturdy, extruded aluminum construction.

Tech Specs
Part Number: 31-017-182
Description: 26" Wall Track (aluminum) with cable management channel covers
Does not include mounting hardware
Dimensions: 26" x 5" x .87" (660 x 127 x 22 mm)
OSHPD Pre-approval Number OPA-0620
Fasteners for attaching track to wall can be purchased separately: part number 97-531 for metal or wood studs; part number 90-011 for hollow walls
Requires brackets to attach Ergotron components. Order separately: part number 97-091 for LX & MX Arms, 400, 200 and 100 Series Arms and Pivots, and Universal CPU Holder; part number 60-156 for Medium and
Small CPU Holders
Shipping Weight: 4 lbs (1.8 kg)
Warranty: Five (5) years
