Basic Specification
Marketing Text: Convert any surface into an adjustable-height standing desk with the attachment of the WorkFit-S. Make computing comfortable for prolonged periods-stand up whenever you want.
DEVICE FEATURES
Display Size Supported: 24 inch
Mounting Hole Pattern: 100 x 100
75 x 75 mm
Mounting Standards: 75/100
MIS-C
MIS-D
VESA FDMI
Rotation: 360 degree
Weight Capacity: 11.3 Kg
OTHER FEATURES
Color: White
Material: Steel, Aluminum and Plastic
Other Features: * Improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose.* Counterbalanced adjustment points allow instantaneous, tool-free re-positioning
Package Includes: * Height-adjustment column, desk clamp, crossbar, two (2) LCD pivots, worksurface, large keyboard tray
PRODUCT
Brand Name: Ergotron
Manufacturer Web Site: http://www.ergotron.com
Product Line: WorkFit
Product Type: Sit-Stand Workstation
WARRANTY
Warranty Information: 5 Years

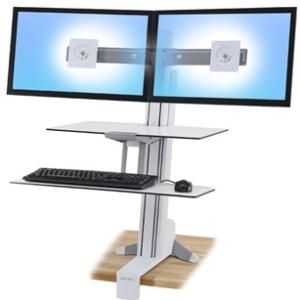

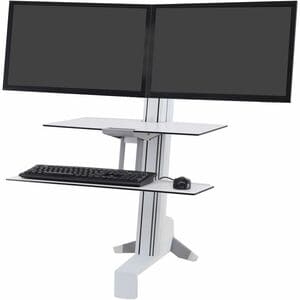

Description: WorkFit-S Sit-Stand Workstation for Dual Displays, with Worksurface and Large Keyboard Tray (white)
Includes height-adjustment column, desk clamp, crossbar, two (2) LCD pivots, worksurface, large keyboard tray
NOTE: Extra-long cables may be required to span between standing and sitting heights
* Maximum outside width of display is 24.5" (62 cm) when display is 2" (5 cm) thick. Accommodates most displays with screen-size up to 24" as well as some displays with screens as large as 26". Actual allowable width of displays will vary slightly depending on display thickness
† Weight Capacity: Maximum total load on height-adjustment assembly = 25 lbs (11.4 kg). LCD weight = 6–12 lbs (2.7–5.5 kg) each, worksurface ? 5 lbs (2.3 kg), keyboard tray ? 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 25 lbs (11.4 kg)
‡ Lift Range: LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 4.8" (12.2 cm) independently; maximum LCD height adjustment = 22.8" (58 cm). The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 5" (13 cm)
Install displays at 3° or 8° upward angle for optimized viewing conditions
Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
NOTE: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Worksurface Dimensions: 0.25"H x 23"W x 15"D (6 x 585 x 380 mm)
Keyboard Tray Dimensions: 0.25"H x 27"W x 9"D (6 x 685 x 226 mm)
Durable, easy-to-clean exterior composed of aluminium, high-grade plastic and powder coated painted steel
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions: 8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight: 44 lbs (20 kg)
Warranty: Five (5) years
