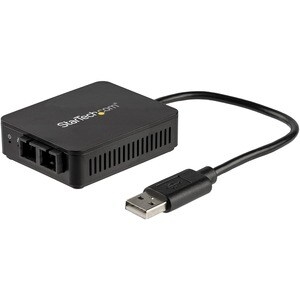

Startech Usb To Fiber Optic Converter - 100basefx Sc - Mm - Windows / Mac / Linux - Usb To Ethernet
QUICK OVERVIEW
Overview
This USB to fiber-optic converter lets you utilize the USB 2.0 (Type-A) port on your laptop or tablet to provide a secure fiber network connection. Windows® and Mac compatible, the network adapter provides a 100Mbps Ethernet network connection and 100BaseFX SC optical transceiver.
Fiber-optic SC port
With an optical transceiver for 100Base-FX networks, the USB to fiber converter delivers network connectivity with a maximum range of 2 km over multimode fiber.
Secure fiber-to-the-desk connectivity
For reliable fiber connectivity, this USB to fiber-optic converter protects your network from problems with electronic interference - a common issue with RJ45 networks. Fiber-to-the-desk connectivity (FTTD) maximizes network security, reducing the risk of data leaks of sensitive information, without compromising network speed and reliability.
Easy portability
Compact and portable, this USB 2.0 to fiber-optic converter is powered directly from the USB port, making it easy to connect when you’re on the go.
Plug and play
Get up and running quickly. The USB fiber-optic converter supports certified drivers for Windows, Mac and Linux®. When you plug the adapter into a USB port, you simply install the drivers and the adapter is ready to transmit over a fiber network.
The US100A20FXSC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
PRODUCT NUMBERS | ||
---|---|---|
TechData Dis | 13127242 | |
ASI | 214375 | |
Ingram Micro USA | 3BM079 | |
Synnex US | STA-US100A20FXSC | |
UPC Code | 065030874663 |
WARRANTY INFORMATION | ||
---|---|---|
Warranty | 2 Years | |
HARDWARE | ||
Bus Type | USB 2.0 | |
Chipset ID | ASIX Electronics - AX88772C | |
Industry Standards | IEEE802.3x 100BASE-FX IEEE 802.1Q VLAN tagging | |
Interface | Fiber Ethernet | |
Ports | 1 | |
PERFORMANCE | ||
Compatible Networks | 1000 Mbps (1 Gbps) | |
DDM | No | |
Max Distance | 2 km (1.2 mi) | |
Maximum Data Transfer Rate | 100 Mbps | |
Promiscuous Mode | Yes | |
Type | Multi Mode | |
Wavelength | 1310nm | |
CONNECTOR(S) | ||
Connector Type(s) | 1 - USB Type-A (4 pin) USB 2.0 Female | |
1 - Fiber Optic SC Female | ||
SOFTWARE | ||
OS Compatibility | Windows® 7, 8, 8.1, 10 Windows® Server 2008, 2012, 2106 macOS 10.9 - 10.13 Linux® kernel 3.5 to 4.11.x, LTS versions only | |
INDICATORS | ||
LED Indicators | 1 - Power | |
1 - Link/Activity | ||
POWER | ||
Power Source | USB-Powered | |
ENVIRONMENTAL | ||
Humidity | 5% ~ 90% RH | |
Operating Temperature | 0°C ~ 60°C (32° ~ 140°F) | |
Storage Temperature | -10° ~ 70°C (14° ~ 158°F) | |
PHYSICAL CHARACTERISTICS | ||
Cable Length | 7.7 in [195 mm] | |
Color | Black | |
Enclosure Type | Plastic | |
Product Height | 0.8 in [20 mm] | |
Product Length | 10.2 in [260 mm] | |
Product Weight | 3.5 oz [100 g] | |
Product Width | 2.2 in [55 mm] | |
PACKAGING INFORMATION | ||
Shipping (Package) Weight | 4.2 oz [120 g] | |
WHAT'S IN THE BOX | ||
Included in Package | 1 - network adapter | |
1 - quick-start guide | ||
Max Transfer Distance | 2 km (1.2 mi) |
