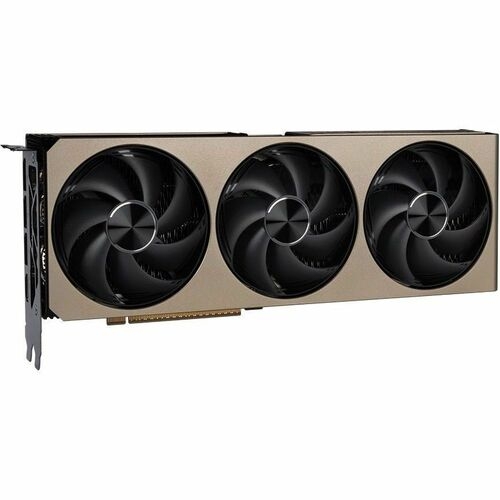

Msi GeForce RTX 5080 16G INSPIRE 3X OC GEFORCE RTX 5080 16G INSPIRE 3X OC
BIG VISION, SMALL FORM
INSPIRE seamlessly fuses a sleek, compact design with cutting-edge performance, offering advanced capabilities while ensuring seamless compatibility with creative and professional builds.
INSPIRE reinvents your build with its Mondrian grid design-a pristine blend of modern art and advanced technology that inspires creativity and enhances your productivity.
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
Compact Design, Boundless Creativity
INSPIRE combines a small form factor with enhanced performance, making it the perfect fit for creative professionals seeking efficiency.
Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
- Triple Fan:
- Three fans and a huge heatsink ensure a cool and quiet experience for you.
- STORMFORCE FAN:
- Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate:
- Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
- Core Pipes:
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Metal Backplate:
- A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- Zero Frozr:
- The fans completely stop when temperatures are relatively low, eliminating all noise.
- Air Antegrade Fin:
- Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency.
- Wave Curved 3.0:
- Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
- MSI Center:
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner:
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
Miscellaneous | |
Additional Information | G-SYNC technology: Yes |
Power Description | |
Power Supply Wattage | 850 W |
Power Connector | 1x 16-pin |
Memory | |
Standard Memory | 16 GB |
Memory Technology | GDDR7 |
Bus Width | 256 bit |
Interfaces/Ports | |
Host Interface | PCI Express 5.0 |
HDMI | Yes |
DisplayPort | Yes |
Number of DisplayPort Outputs | 3 |
Number of HDMI Outputs | 1 |
Processor & Chipset | |
Chipset Manufacturer | NVIDIA |
Chipset Model | RTX 5080 |
Chipset Line | GeForce |
Chipset Series | RTX |
GPU Clock | 2640 MHz |
Technical Information | |
API Supported | DirectX 12 |
HDCP Supported | Yes |
Number of Monitors Supported | 4 |
Maximum Digital Display Resolution | 7680 x 4320 |
CUDA Cores | 10752 |
Physical Characteristics | |
Weight (Approximate) | 950 g |
Form Factor | Plug-in Card |
Length | 288 mm |
Cooler Type | Fan Cooler |
Height | 50 mm |
Width | 112 mm |
General Information | |
Product Type | Graphic Card |
Manufacturer Part Number | GEFORCE RTX 5080 16G INSPIRE 3X OC |
Manufacturer Website Address | http://www.msi.com |
Manufacturer | MSI |
Product Model | GeForce RTX 5080 16G INSPIRE 3X OC |
Product Name | GeForce RTX 5080 16G INSPIRE 3X OC Graphic Card |
Brand Name | MSI |
