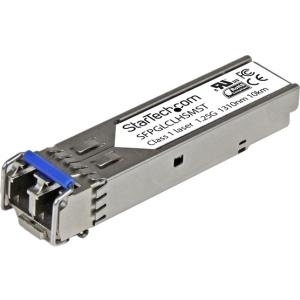

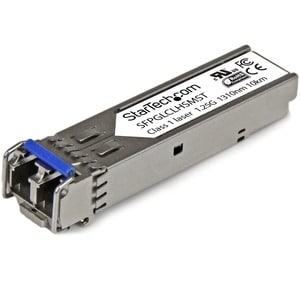

Startech Gigabit Fiber Sfp Transceiver Sm Lc 10km Sfpglclhsmst
Add, replace or upgrade SFP modules on Gigabit fiber equipment. The SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade an SFP slot on your Gigabit fiber networking equipment or fiber media converter.
Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 1.5 km (.9 mi.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1300nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PEX1000SFP" text="PCI Express Open SFP NIC (PEX1000SFP), or ET1110PSE" text="Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Performance | |
| Max Transfer Distance | 10 km (6.2 mi) |
| Maximum Data Transfer Rate | 1.25 Gbps |
| MTBF | 3,092,408 hours |
| Wavelength | 1310nm |
| Physical Characteristics | |
| Product Height | 10 mm [0.4 in] |
| Product Length | 60 mm [2.4 in] |
| Product Weight | 18 g [0.6 oz] |
| Product Width | 12 mm [0.5 in] |
| Special Notes / Requirements | |
| Note | For use in Gigabit fiber networking equipment and media converters |
| System and Cable Requirements | MSA or Cisco compliant SFP port |
| What's in the Box | |
| Included in Package | 1.25 Gbps Single Mode LC SFP |
| Performance | |
| Fiber Type | Single Mode / Multi Mode |
| Fiber Operating Mode | Half/Full-Duplex |
| DDM | No |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| Packaging Information | |
| Shipping (Package) Weight | 95 g [3.4 oz] |
| Hardware | |
| WDM | No |
| Industry Standards | IEEE 802.3z 1000BASE-LX/LH |
| Compatible Brand | Cisco |
| Environmental | |
| Storage Temperature | -40?C to 85?C (-40?F to 85?F) |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Humidity | 30~70% RH |
| Connector(s) | |
| Local Unit Connectors | Fiber Optic LC Duplex Female |
The SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade an SFP slot on your Gigabit fiber networking equipment or fiber media converter.
Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 1.5 km (.9 mi.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1310nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
