Startech Gigabit Fiber Sfp Transceiver Sm Lc 20km Sfpg1320c
SKU
237271
Brand
MPN
SFPG1320C
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$100.00
Buy Now And Earn 100 Reward Points!

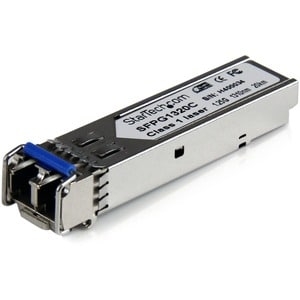

The SFPG1320C Cisco® Compatible Gigabit Fiber SFP Transceiver Module SM LC - 20 km (12.4 miles) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Single-Mode LC port on your Gigabit fiber networking equipment or fiber media converter.
Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1310nm single-mode SFP module is compatible with Cisco equipment.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Replacing defective or damaged SFPs/Mini GBICs in MSA or Cisco compliant equipment
- Equipped with an industry standard single-mode LC interface, this module can extend your network connectivity up to 20 km
Features
- Data rates up to 1.25 Gbps
- Supports distances up to 20 km (12.4 miles)
- Complies with SFP Multi-Source Agreements standards (MSA)
- Compatible with Cisco equipment
- LC Fiber connector
- Fully Hot Pluggable
Performance | |
Max Transfer Distance | 20 km (12.4 mi) |
Maximum Data Transfer Rate | 1.25 Gbps |
MTBF | 2,722,277 hours |
Wavelength | 1310nm |
Physical Characteristics | |
Product Height | 10 mm [0.4 in] |
Product Length | 60 mm [2.4 in] |
Product Weight | 17 g [0.6 oz] |
Product Width | 12 mm [0.5 in] |
Special Notes / Requirements | |
Note | For use in Gigabit fiber networking equipment and media converters |
System and Cable Requirements | MSA or Cisco compliant SFP port |
What's in the Box | |
Included in Package | 1.25 Gbps Single Mode LC SFP |
Performance | |
Fiber Type | Single Mode |
Fiber Operating Mode | Half/Full-Duplex |
DDM | Yes |
Compatible Networks | 1000 Mbps (1 Gbps) |
Packaging Information | |
Shipping (Package) Weight | 95 g [3.4 oz] |
Hardware | |
WDM | No |
Industry Standards | IEEE 802.3z 1000BASE-LH |
Compatible Brand | Cisco |
Environmental | |
Storage Temperature | -40?C to 85?C (-40?F to 185?F) |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Humidity | 30~70% RH |
Connector(s) | |
Local Unit Connectors | Fiber Optic LC Duplex Female |
