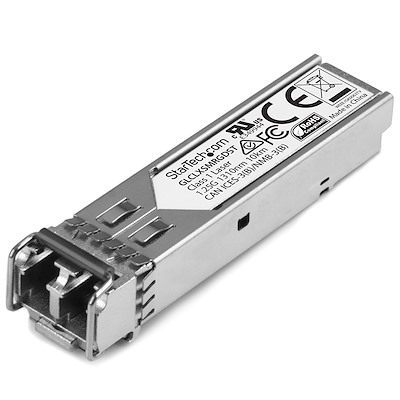

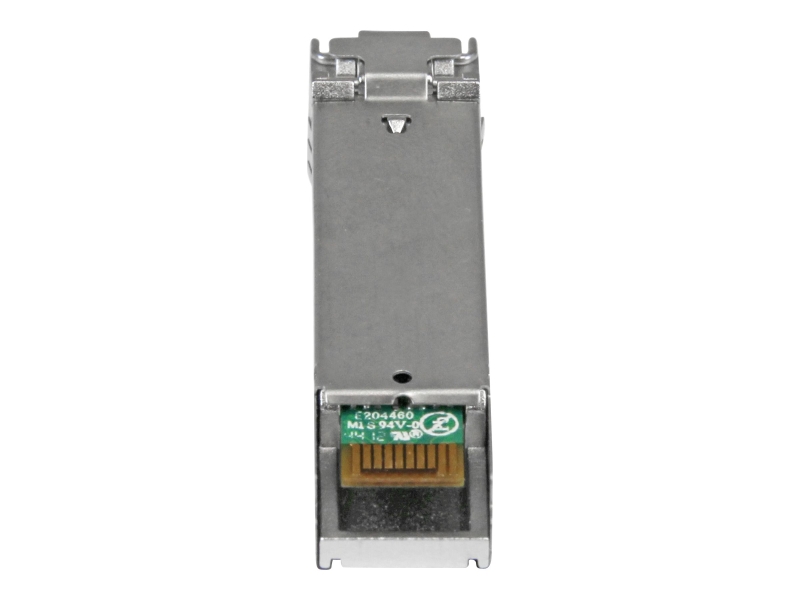

STARTECH.COM CISCO GLC-LX-SM-RGD COMP. SFP - 1GBE SMF TRANSCEIVER 10KM LTW GLCLXSMRGDST
- 100% CISCO GLC-LX-SM-RGD COMPATIBLE: Works with Cisco switches like Firepower, ASR920, IE2000, IE4000, ASR1000 and others
- TECHNICAL SPECS: 1000BASE-LX | 1 Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
The GLCLXSMRGDST is a Cisco GLC-LX-SM-RGD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,092,408 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
| Warranty Information | Warranty | Lifetime |
|---|---|---|
| Color | Silver | |
| Material | Aluminum | |
| System and Cable Requirements | MSA or Cisco compliant SFP port | |
| For use in Gigabit fiber networking equipment and media converters | ||
| Connector(s) | 1 - Local Unit Connectors | Fiber Optic LC Duplex |
| Environmental | Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
| Humidity | 5~95% RH | |
| Hardware | Compatible Brand | Cisco |
| Industry Standards | IEEE 802.3z 1000BASE-LX | |
| Packaging Information | Shipping (Package) Weight | 0.1 lb [0.0 kg] |
| Package Length | 4.7 in [12.0 cm] | |
| Package Width | 3.5 in [90.0 mm] | |
| Package Height | 1.2 in [30.0 mm] | |
| Performance | Maximum Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 10 km (6.2 mi) | |
| Type | Single Mode | |
| Wavelength | 1310nm | |
| Fiber Operating Mode | Full-Duplex | |
| DDM | Yes | |
| Compatible Networks | 1000 Mbps (1 Gbps) | |
| MTBF | 3,092,408 hours | |
| Power Consumption (In Watts) | < 1 W | |
| Physical Characteristics | Product Length | 2.2 in [56.6 mm] |
| Product Width | 0.5 in [13.7 mm] | |
| Product Height | 0.5 in [1.2 cm] | |
| Weight of Product | 0.6 oz [16.0 g] | |
| What's in the Box | 1 - Included in Package | SFP transceiver |
