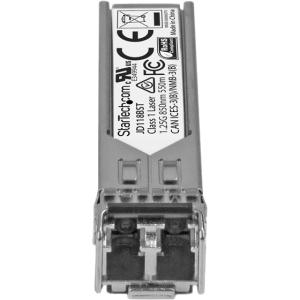

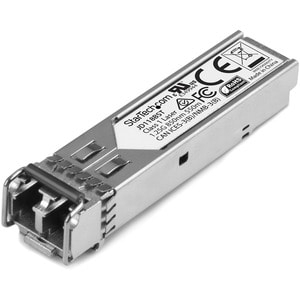

HP JD118B 1000Base-SX Sfp Transceiver Mm JD118BST
SKU
247285
Brand
MPN
JD118BST
Warranty
Standard Manufacturer's Warranty
$84.00
Buy Now And Earn 84 Reward Points!
QUICK OVERVIEW
550m (1804 ft) - 850nm -- Mini-GBIC w/ Digital JD118BST
The JD118BST is an HP JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft). Technical Specifications: Wavelength: 850 nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550 m (1804 ft) MTBF: 3,381,761 hours Power Consumption: Less than 1 Watt Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. More from the Manufacturer More from the Manufacturer
| Product Type | SFP (mini-GBIC) |
| Form Factor | Hot-swappable, Hot-pluggable |
| Network Technology | 1000Base-SX |
| Brand Name | StarTech.com |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| Manufacturer Part Number | JD118BST |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | HP JD118B Compatible SFP Transceiver Module - 1000BASE-SX |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Connector Type | LC |
| Fiber Mode Supported | Multi-mode |
| Compatibility | MSA Compliant HPE Switches: • 5900 • 12500 • 5500 • 5820 • 5120 |
| Weight (Approximate) | 17 g |
| Height | 12.7 mm |
| Width | 12.7 mm |
| Depth | 55.9 mm |
| Application/Usage | Optical Network, Data Networking |
| Shipping Dimensions | Height 3, Width 10, Length 12, Shipping Weight 0.05 KG |
HP JD118B 1000Base-SX SFP Transceiver MM
