Interactive Arm Vhd 45-304-026
SKU
247080
Brand
MPN
45-304-026
Warranty
Standard Manufacturer's Warranty
$563.00
Buy Now And Earn 563 Reward Points!

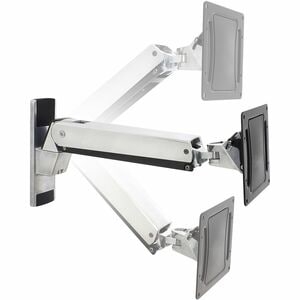

Accommodate active TV positioning. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 180° motion to either side. Now anyone can effortlessly move a TV or heavy monitor into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
| Application/Usage | Wall, Gaming |
| Product Type | Mounting Arm |
| Device Supported | Display, Monitor, TV |
| Features | Pivot, Pan, Cable Management, Adjustable, Retractable, Rotate, Swing, Tilt, Vertical Adjustment, Extendable, Ergonomic, Heavy Duty |
| Maximum Load Capacity | 31.75 kg |
| Brand Name | Ergotron |
| Minimum Screen Size Supported | 101.6 cm |
| Maximum Screen Size Supported | 228.6 cm (90") |
| VESA Mount Compatible | Yes |
| Product Family | Interactive |
| Mounting Pattern | 200 x 600, 200 x 100, 200 x 400 |
| Product Color | Polished Aluminum |
| Color Family | Grey |
| Minimum Load Capacity | 15.88 kg |
| Mount Function | Adjustable, Cable Management, Pan, Extendable, Pivot, Rotate, Tilt, Wall Mount |
| Mount Surface | Wall |
| Manufacturer Part Number | 45304026 |
| Manufacturer Website Address | http://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx |
| Manufacturer | Ergotron, Inc |
| Product Name | Interactive Arm, VHD |
| Product Line | Interactive |
| Additional Information | • Patented Constant Force technology enables light-touch adjustments • Gravity pivot enables tilting capabilities without the need of knobs or levers • Tilts forward 15°, tilts back 5° • Rotation of +/-5° provides leveling adjustment of screen in any position • Level the screen at any position with +/- 5º of post-installation rotation • Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions • Extends 28" (71 cm) from wall when in use and can be fully retracted to 6.5" (17 cm) when not in use |
| Weight (Approximate) | 12.20 kg |
| Form Factor | Wall Mountable |
| Maximum Adjustable Height | 50.8 cm |
| Minimum Tilt Angle | -10° |
| Maximum Tilt Angle | 15° |
| Height Adjustable | Yes |
| Minimum Rotate Angle | -5° |
| Maximum Rotate Angle | 5° |
| Maximum Pan Angle | 180° |
| Shipping Dimensions | Height 19, Width 33, Length 78, Shipping Weight 13.68 KG |
INTERACTIVE ARM VHD
