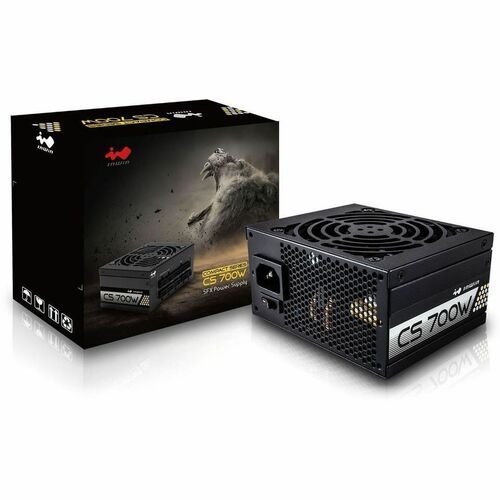

In Win Compact CS-700W Modular Power Supply - 700 W - Internal - 120 V, 230 V Input - 12 V, 5 V, 3.3 V, -12 V, 5 V SB Output - Active PFC - 1 +12V Rails - PCI Express Connector - ATI CrossFire Supported - NVIDIA SLI Supported - 90% Efficiency IW-CS700-SF
An Absolute Beast of SFX Power Supply
The CS-700W is an 80 PLUS® Gold certified SFX power supply. It has a higher density power output compared with the other SFX PSUs. Powerful single +12V rail design, perfect for high-end components or overclocking. The CS-700W provides beastly performance in a compact PSU.
High Density Power Output | The most powerful small PSU!
Power supplies are valued for their efficiency. The CS-700W has excellent density power output and would achieve 882W per liter, according to the industry's standard. The CS-700W also can power the high-end graphic card!
92mm Silent Fan to Balance Noise & Cooling
The built-in 92mm fan has excellent airflow and low noise output, the lowest emitted noise level is 18dBA.
Designed for High-End Systems
Powerful single +12V rail design, perfect for high-end components or overclocking.
80 PLUS® Gold Certified, Fully-Modular Power Supply
The CS-700W delivers up to 90% efficiency, generating less heat and effectively reducing operating cost.
Highly Reliable Japanese Electrolytic Capacitors
Premium Japanese capacitors improves power stability at higher temperatures and provides an ultra-long lifespan.
5V and 3.3V DC to DC Design
DC to DC converter design provides superior dynamic response and supports a foundation for greater system stability.
Fully Modular Cables for Quick and Easy Installation
The fully modular and flexible flat cable design allow builders to quickly and easily install without any difficulty.
| Reliability | |
| MTBF | 100000 Hour |
| Environmental Conditions | |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of 4-pin Molex Power Connectors | 4 |
| Physical Characteristics | |
| Weight (Approximate) | 1.73 kg |
| Form Factor | Internal |
| Height | 63 mm |
| Width | 125 mm |
| Depth | 100 mm |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Taiwan Restriction of Hazardous Substances (Taiwan RoHS) | |
| Restriction of Hazardous Substances (RoHS) | |
| China Restriction of Hazardous Substances (China RoHS) | |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | IW-CS700-SFX |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Manufacturer | In Win Development, Inc |
| Product Model | CS-700W |
| Product Name | Compact CS-700W Power Supply |
| Product Line | Compact |
| Product Series | CS |
| Brand Name | In Win |
| Technical Information | |
| Efficiency | 90% |
| Fan Diameter | 92 mm |
| Protection Type | Over Power |
| Over Current | |
| Over Voltage | |
| Over Temperature | |
| Short Circuit | |
| Under Voltage | |
| Power Factor Correction (PFC) | Active |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Modular | Yes |
| Power Description | |
| Input Voltage | 120 V |
| 230 V | |
| Output Power | 700 W |
| Output Voltage | 5 V SB |
| 5 V | |
| 3.3 V | |
| 12 V | |
| -12 V | |
| Output Current | 58.40 A |
| 2.50 A | |
| 22 A | |
| 300 mA | |
| Input Frequency | 50-60Hz |
| Number of +12V Rails | 1 |
| Output Voltage Detail | 12 V @ 58.4 A |
| -12 V @ 0.3 A | |
| 5 V @ 22 A | |
| 3.3 V @ 22 A | |
| 5 V SB @ 2.5 A | |
