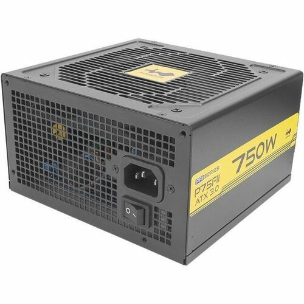

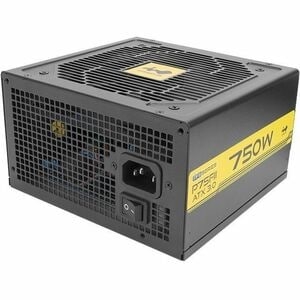

In Win P75FII 750W Gold PCI-E Gen 5.0 Ready Power Supply - 5 Year Warranty - Retail Box - Internal - 12 V Dc, 5 V Dc, 3.3 V Dc Output - 1 +12V Rails - 1 Fan(s) - 90% Efficiency IW-PS-PFII750W
SKU
408292
Brand
MPN
IW-PS-PFII750W
Warranty
Standard Manufacturer's Warranty
$123.00
Buy Now And Earn 123 Reward Points!
New PFII Series born for ATX3.0
The PFII Series ATX 3.0 fully meets the newest generation of Intel's PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allow users to game or work with peace of mind.
• 100us Power Excursion • 100us GPU Power Excursion PCI-E Gen 5.0 Ready
Includes PCI-E 5.0, 16-pin connector (12VHPWR) with high-quality 16AWG cable. Exclusive for next-generation high-performance graphics cards. Fully unleash your GPU's powerful performance!
Meet various GPU
The PFII Series contains flat cables, which not only facilitates cable management, but also provides sufficient PCIe cables to meet various GPU connectors
80 PLUS® Gold Certified for High Efficiency
The PFII Series ATX 3.0 is an 80 PLUS® Gold certified power supply that delivers up to 90% conversion efficiency which can generate less heat, effectively lowering energy consumption and noise.
Multi-Protection Safeguards
The PFII Series ATX 3.0 comes with plenty of safeguards against over-currents, over-and-under voltages, short circuits, over-heating and over-power. These precautions are to ensure quality and safe power usage.
The PFII Series ATX 3.0 fully meets the newest generation of Intel's PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allow users to game or work with peace of mind.
• 100us Power Excursion • 100us GPU Power Excursion PCI-E Gen 5.0 Ready
Includes PCI-E 5.0, 16-pin connector (12VHPWR) with high-quality 16AWG cable. Exclusive for next-generation high-performance graphics cards. Fully unleash your GPU's powerful performance!
Meet various GPU
The PFII Series contains flat cables, which not only facilitates cable management, but also provides sufficient PCIe cables to meet various GPU connectors
80 PLUS® Gold Certified for High Efficiency
The PFII Series ATX 3.0 is an 80 PLUS® Gold certified power supply that delivers up to 90% conversion efficiency which can generate less heat, effectively lowering energy consumption and noise.
Multi-Protection Safeguards
The PFII Series ATX 3.0 comes with plenty of safeguards against over-currents, over-and-under voltages, short circuits, over-heating and over-power. These precautions are to ensure quality and safe power usage.
| Product Type | Power Supply |
| Efficiency | 90% |
| Output Power | 750 W |
| Output Voltage | 5 V DC, -12 V DC, 12 V DC, 3.3 V DC, 5 V SB |
| Form Factor | Internal |
| Product Model | P75FII |
| Brand Name | In Win |
| Number of +12V Rails | 1 |
| Product Family | PFII |
| Specification Compliance | ATX12V v3.0 |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | IWPSPFII750W |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Manufacturer | In Win Development, Inc |
| Product Name | PFII P75FII 750W Power Supply |
| Product Series | PFII |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 1.80 kg |
| Height | 86 mm |
| Width | 150 mm |
| Output Current | 20 A, 300 mA, 62.50 A, 3 A |
| Output Voltage Detail | 5 V DC @ 20 A, 3.3 V DC @ 20 A, 12 V DC @ 62.5 A, -12 V DC @ 0.3 A, 5 V SB @ 3 A |
| Number of Fans | 1 |
| Shipping Dimensions | Height 11.2, Width 21.5, Length 28.2, Shipping Weight 2.22 KG |
In Win P75FII 750W GOLD PCI-E Gen 5.0 Ready Power Supply - 5 Year Warranty - Retail Box - Internal - 12 V DC, 5 V DC, 3.3 V DC Output - 1 +12V Rails - 1 Fan(s) - 90% Efficiency
