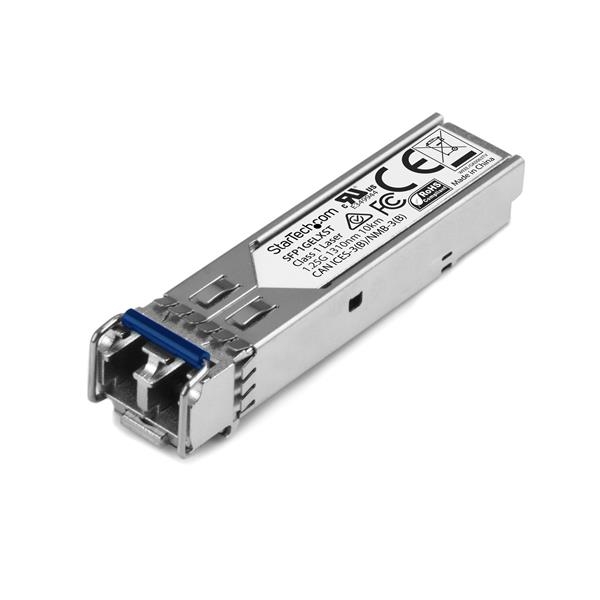

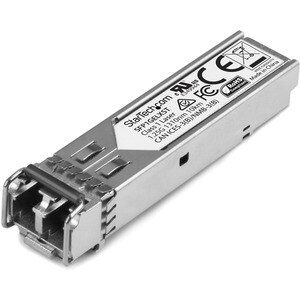

Startech Juniper Sfp-1ge-lx Compatible Sfp - Gigabit Fiber Sfp Transceiver Module - Sm Lc - 10
QUICK OVERVIEW
Overview
This StarTech.com Gigabit fiber SFP is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Juniper Networks® switches and routers that support the Juniper SFP-1GE-LX transceiver module, as well as other major brands of networking equipment.
This 1000Base-LX SFP delivers Gigabit connectivity over single-mode fiber cable, with a range of up to 10 km (6.2 mi.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.
Built for reliable network performance
This single-mode SFP transceiver is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.
Fully compatible with Juniper Networks and other major brands
The SM Gigabit SFP is engineered to the highest quality standards and is 100% Juniper compatible, equivalent to the Juniper SFP-1GE-LX SFP transceiver. The StarTech.com SFP transceiver is configured and fully tested to ensure it works seamlessly with Juniper Networks or other major brands of networking equipment.
You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.
Convenient and scalable
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that’s compatible with a multitude of Gigabit networking devices.
Ideal for use in switches, routers, and other networking equipment, the SFP provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SFP supports single-mode fiber cable with a maximum distance of 10 km or 6.2 mi., and maximum data rates of up to 1.25Gbps. This GbE fiber SFP also supports Digital Diagnostics Monitoring (DDM / DOM).
You can count on SFP1GELXST for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Performance | |
Maximum Data Transfer Rate | 1.25 Gbps |
MTBF | 3,092,408 hours |
Wavelength | 1310nm |
Physical Characteristics | |
Color | Silver |
Enclosure Type | Aluminum |
Product Height | 12.5 mm [0.5 in] |
Product Length | 56.6 mm [2.2 in] |
Product Weight | 28 g [1 oz] |
Product Width | 13.7 mm [0.5 in] |
Special Notes / Requirements | |
System and Cable Requirements | For use in Gigabit fiber networking equipment and media converters |
MSA or Juniper Networks compliant SFP port | |
What's in the Box | |
Included in Package | SFP transceiver |
Performance | |
Max Transfer Distance | 10 km (6.2 mi) |
Fiber Type | Single Mode |
Fiber Operating Mode | Full-Duplex |
DDM | Yes |
Compatible Networks | 1000 Mbps (1 Gbps) |
Packaging Information | |
Shipping (Package) Weight | 54 g [1.9 oz] |
Hardware | |
Industry Standards | IEEE 802.3z 1000BASE-LX |
Compatible Brand | Juniper |
Environmental | |
Storage Temperature | -40?C to 85?C (-40?F to 185?F) |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Humidity | 5~95% RH |
Connector(s) | |
Local Unit Connectors | Fiber Optic LC Duplex Female |
Marketing Text | This 1000Base-LX SFP delivers Gigabit connectivity over single-mode fiber cable, with a range of up to 10 km (6.2 mi.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment. |
PI Date | Jun 2017 |
Brand Name | Startech |
Manufacturer Web Site | http://www.startech.com |
Form Factor | SFP+ |
Product Type | Transceivers Module |
Cable Type | Single-Mode |
Connector | Duplex LC |
Data Transfer Rate | 1.25Gbps |
Interface | 1000Base-LX |
Maximum Transmission Distance | 10000meter |
Wavelength | 1310nm |
Depth (mm) | 56.6 |
Height (mm) | 12.5 |
Width (mm) | 13.7 |
Weight (Grams) | 28.0 |
Other Features | * Meets or exceeds OEM specifications and MSA industry standard * Delivers reliable Gigabit Ethernet connections for 1000Base-LX compliant networks * Supports Digital Diagnostics Monitoring (DDM) |
