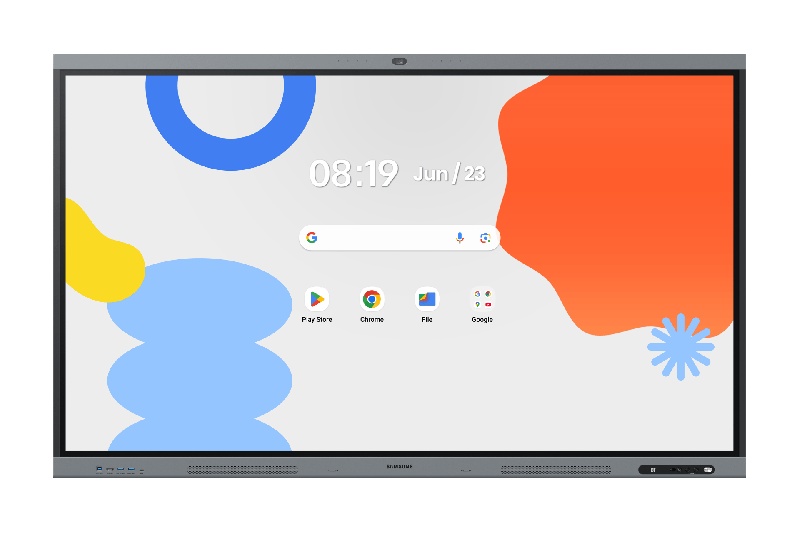

Samsung (Wafx-P) Interactive Display, 75" UHD, 450NITS, LAN/WIFI, Cam, Mic/Spkr, 12H/7D,3Y LH75WAFPLGCXXY

SKU
439721
Brand
MPN
LH75WAFPLGCXXY
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$3,880.00
Buy Now And Earn 3880 Reward Points!
Unlimited Learning Possibilities
Introducing the WAFX-P series, a next-generation interactive display built for both classrooms and meeting rooms. Powered by Android 15 and a high-performance Octa-core CPU, it delivers a fast, intuitive experience for accessing essential apps and tools. As an EDLA-certified device, WAFX-P provides official access to Google apps and services. It also features a built-in 48MP camera, far-field mic, dual 20W speakers with woofer, and embedded AI functions—enabling
seamless teaching, presenting, and collaboration with no extra setup.

Key features

Android 15 & Octa-core CPU
Powered by Android™15 and a high-performance Octa-core CPU, WAFX-P delivers a fast and intuitive user experience. Access essential apps and multitask with
ease in both education and business settings.

EDLA Certification
As an EDLA-certified interactive display, the WAFX-P comes with Google apps and services. It offers access to Google Play and delivers a streamlined
experience that is optimised for education and collaboration.

All-in-One Video Call System
WAFX-P comes equipped with a 48MP camera, far-field microphone with 10m pickup range, and dual 20W speakers with a woofer. Everything is built in for
instant video calls—no extra equipment required.

AI Write & Search
Take handwritten notes to the digital world seamlessly. With WAFX-P’s embedded AI and digital ink recognition, simply circle handwritten notes and tap the search icon, unlocking web results, images, and resources without typing. Whether in class or in a meeting, discover a smarter way to turn work into real-time insights.
* Handwriting recognition is only supported for the language set as the system language. May not work on all written content.
* Accuracy may vary depending on the language and individual handwriting styles. Accuracy of results is not guaranteed.

Annotation On
Users can take notes instantly with a dedicated Annotation button. Whether watching videos or reviewing materials, annotate without switching apps to
enhance engagement and productivity.

Device Management Solution
A device management solution is essential to advancing educational environments, and the WAF series optimises remote management for whiteboard settings and apps, guaranteeing efficient and stable operation in any learning environment.
Diagonal Size 75"
Type Direct, 60Hz
Resolution 3,840 x 2,160 (Landscape)
Brightness (Typ ) 450cd/m²
Contrast Ratio (Typ ) 1,200 : 1
Viewing Angle (H/V) 178 : 178
Haze 25%
Response Time (G-to-G) 8ms
Backlight life (typical) 50,000hrs
Dynamic C/R 4,000 : 1
Speaker Type Bulit in Speaker(20Wx 2CH), Woofer(4Ω20W)
VIDEO INPUT HDMI 3 (Rear 2, Front 1) USB C (Front), OPS, DP
AUDIO INPUT 1 (Stereo Mini Jack)
USB INPUT 5 (2.0x3, 3.0x2 )
RGB OUTPUT N/A
VIDEO OUTPUT HDMI Out (Rear)
AUDIO OUTPUT 1 (Stereo Mini Jack)
Touch Out OUTPUT Touch Out 2 (Front1, Rear1)
INTERNAL SENSOR Eco Sensor
EXTERNAL SENSOR Touch Input, RS232C In, RJ45 In/Out
BT/WiFi Yes (BT5.0/ Wi-Fi Dual Band)
WIFI Protocol Wifi 6 (802.11ax)
Ethernet speed 1 Gbps
Touch Type IR
# of Touch 50 points
Touch Pen Type Passive Pen
Object Recognition Range FrontPen: 3mm, Back Pen: 8mm,Eraser: ≥9cm²
Object Recognition Range (Minimu 2mm
Touch Response Time ≤3ms
Drawing Speed (Touch latency) Android15 for35ms
Thickness 3.2T
Hardness ≥8H
Microphone Quantity 8-mic
Pick up Area 10m (180°)
Speech Enhancement Yes
Output signal USB output
Pixels 48MP
UVCUVC DIAGONAL114.9°
Read-write distance <30mm
Read/write speed 106 ~ 424kbps
Read and write latency <100ms
Power Type Internal
Power Supply AC100-240V 50/60Hz
Dimension (mm) Set 1,705mm x 86.9mm x 1,036mm
Dimension (mm) Package 1,860mm x 185mm x 1,125mm
Weight (kg) Set 53.9Kg
Weight (kg) Package 64.5kg
VESAMount 800 x 400 (4-M8 Screw Hole )
Protection Glass Yes
Media PlayerOption Type OPS Slot
Rotation Landscape only
PowerCable Length 3m
Bezel Colour Black & Blue grey/ Black
Operating Temperature 0℃~40℃
Humidity 10~80%
Key Android 15 OS with EDLA Certified
Orientation Landscape
H/W Touch Overlay(IR), Front Connectivity, OPS I/F Support, Eco Sensor, WiFi/BT embedded
Processor Octacore (A78 x 4 + A55 X 4)
RAM 16GB
Storage 128GB
Operating System Android 15
Included Power Cord, Remote Controller, HDMI Cable, Touch Pen(2ea, Black), USB Cable, Warranty/QSG
