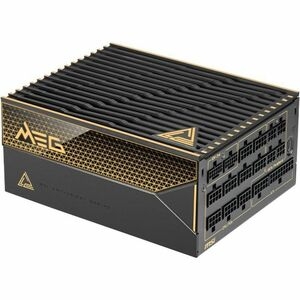

80+ Titanium Full Modular ATX3.1 PCIE5.1 MEG AI1600T PCIE5
SKU
435037
Brand
MPN
MEG AI1600T PCIE5
Warranty
Standard Manufacturer's Warranty
$721.00
Buy Now And Earn 721 Reward Points!
MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.
PERFORMANCE | THERMAL DESIGN | DURABILITY | EZ DIY | GAMING INTELLIGENCE | Quality Test Challenges
Each product undergoes hundreds of strict quality checks before leaving the factory to ensure it reaches consumers with assured quality. The MEG Ai1600T PCIE5 reveals the most important items result, users can witness each test, showcasing its quality.
PERFORMANCE | THERMAL DESIGN | DURABILITY | EZ DIY | GAMING INTELLIGENCE | Quality Test Challenges
Each product undergoes hundreds of strict quality checks before leaving the factory to ensure it reaches consumers with assured quality. The MEG Ai1600T PCIE5 reveals the most important items result, users can witness each test, showcasing its quality.
| Product Type | Power Supply |
| Efficiency | 94% |
| Input Voltage | 120 V AC, 230 V AC |
| Output Voltage | 3.3 V DC, -12 V DC, 5 V DC, 5 V SB, 12 V DC |
| Features | Low Noise, RGB Lighting, Compact |
| Form Factor | Internal |
| Brand Name | MSI |
| NVIDIA SLI Supported | Yes |
| Number of +12V Rails | 1 |
| Product Family | MEG |
| Modular | Yes |
| Specification Compliance | ATX 3.1 |
| PCI Express Connector | Yes |
| Manufacturer Part Number | MEG AI1600T PCIE5 |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Name | MEG 1600W Power Supply |
| Product Series | MEG |
| Number of SATA Power Connectors | 8 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of (6+2 pin) PCI Express Power Connectors | 9 |
| Number of 4-pin Molex Power Connectors | 8 |
| Height | 190 mm |
| Width | 150 mm |
| Depth | 86 mm |
| Input Frequency | 60 Hz |
| Output Voltage Detail | 12 V DC @ 133.3 A, 3.3 V DC @ 22 A, -12 V DC @ 0.3 A, 5 V DC @ 22 A, 5 V SB @ 3 A |
| Fan Diameter | 135 mm |
| Protection Type | Under Voltage, Surge & Inrush Protection, Short Circuit, Over Voltage, Over Temperature, Over Power, Over Current, No Load |
| Fan Bearing Type | Dual Ball Fan Bearing |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| Shipping Dimensions | Height 15, Width 24.5, Length 38.5, Shipping Weight 5.9 KG |
80+ Titanium Full Modular ATX3.1 PCIE5.1
