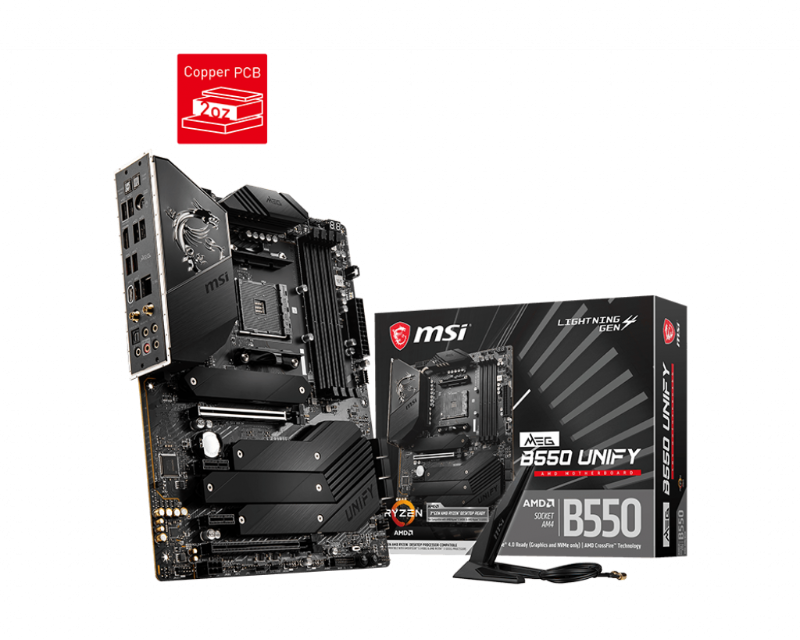

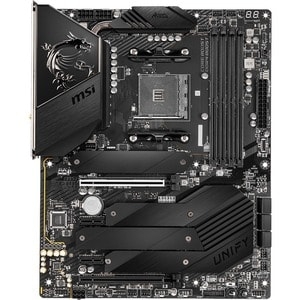

MSI MEG B550 UNIFY Motherboard
SKU
366054
Brand
MPN
MEG B550 UNIFY
Warranty
Standard Manufacturer's Warranty
$499.00
Buy Now And Earn 499 Reward Points!
Audio
| Audio Channels | 7.1 |
Miscellaneous
| Brand Compatibility | AMD |
Video
| Onboard Video | CPU Dependent Video |
Physical Characteristics
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
I/O Expansions
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 4 |
Memory
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 1866 MHz |
| 2133 MHz | |
| 2400 MHz | |
| 2667 MHz | |
| 2667 MHz (O.C.) | |
| 4600 MHz (O.C.) | |
| 4733 MHz (O.C.) | |
| 4866 MHz (O.C.) | |
| 5000 MHz (O.C.) | |
| 5100 MHz (O.C.) | |
| 2800 MHz | |
| 2800 MHz (O.C.) | |
| 2933 MHz | |
| 2933 MHz (O.C.) | |
| 3000 MHz | |
| 3000 MHz (O.C.) | |
| 3066 MHz | |
| 3066 MHz (O.C.) | |
| 3200 MHz | |
| 3200 MHz (O.C.) | |
| 3466 MHz (O.C.) | |
| 3600 MHz (O.C.) | |
| 3733 MHz (O.C.) | |
| 3866 MHz (O.C.) | |
| 4000 MHz (O.C.) | |
| 4133 MHz (O.C.) | |
| 4266 MHz (O.C.) | |
| 4400 MHz (O.C.) | |
| 4533 MHz (O.C.) |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| 2.5Gigabit Ethernet | Yes |
I/O Controller
| RAID Levels | 0 |
| 1 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 3.2 Ports | 3 |
Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 4 |
