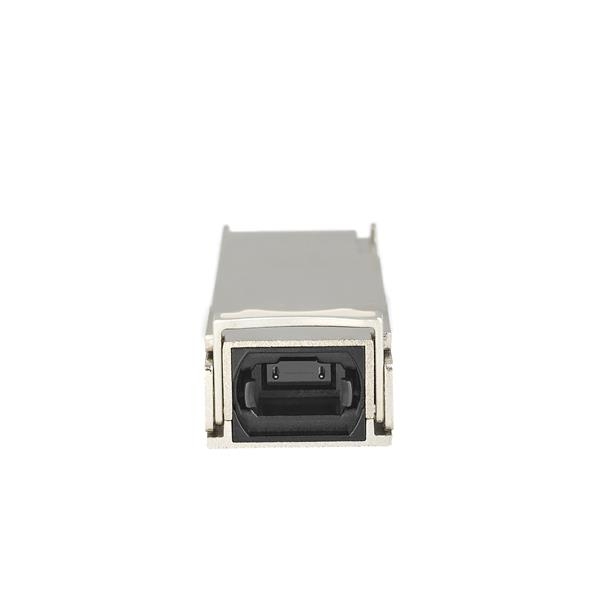

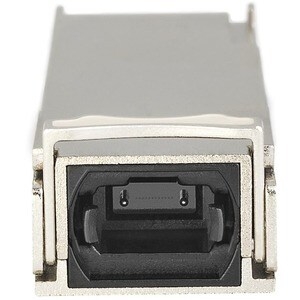

Startech Msa Compliant 40gbase-sr4 Qsfp+ - 40g Qsfp+ Transceiver Module With Mpo Connector - Mm -
QUICK OVERVIEW
Overview
This 40GBase-SR4 QSFP+ module delivers what you need most in your network connections: reliable performance. It’s built to exacting MSA specifications and fully tested to ensure seamless compatibility. The multimode QSFP+ transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment, and it’s backed by a lifetime warranty.
Delivers 40 Gigabit Ethernet connections
With data transfer rates of up to 40Gbps and support for Digital Diagnostics Monitoring (DDM / DOM), this QSFP+ module can be installed into fiber networking equipment with an MSA compliant port, using an MPO connector. It delivers dependable 40 Gigabit connectivity over multimode fiber for 40GBase-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft.) and 850 nm optical wavelength.
Built for reliable network performance
This optical transceiver is engineered to meet or exceed the industry’s MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.
Convenient and scalable
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile solution that’s compatible with a wide range of networking equipment, allowing you to expand your network to remote segments cost-effectively.
You can count on QSFP40SR4ST for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Connector(s) | |
Local Unit Connectors | MPO |
Environmental | |
Humidity | 5~95% RH |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Storage Temperature | -40?C to 85?C (-40?F to 185?F) |
Hardware | |
Industry Standards | IEEE 802.3ba 40GBASE-SR4 |
Packaging Information | |
Shipping (Package) Weight | 62 g [2.2 oz] |
Performance | |
Compatible Networks | 40 Gbps |
DDM | Yes |
Fiber Operating Mode | Full-Duplex |
Fiber Type | Multi Mode |
Max Transfer Distance | 150 m (492 ft) |
Maximum Data Transfer Rate | 40 Gbps |
MTBF | 1,489,426 hours |
Wavelength | 850nm |
Physical Characteristics | |
Color | Silver |
Enclosure Type | Aluminum |
Product Height | 13 mm [0.5 in] |
Product Length | 72 mm [2.8 in] |
Product Weight | 34 g [1.2 oz] |
Product Width | 18.4 mm [0.7 in] |
What's in the Box | |
Included in Package | QSFP+ transceiver |
Marketing Text | This 40GBase-SR4 QSFP+ module delivers what you need most in your network connections: reliable performance. Its built to exacting MSA specifications and fully tested to ensure seamless compatibility. The multimode QSFP+ transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment, and its backed by a lifetime warranty. |
PI Date | Feb 2018 |
Brand Name | Startech |
Manufacturer Web Site | http://www.startech.com |
Form Factor | QSFP+ |
Product Type | Transceiver |
Cable Type | Multimode Fiber |
Connector | MPO |
Data Transfer Rate | 40Gbps |
Interface | 40GBASE-SR4 |
Maximum Transmission Distance | 150meter |
Wavelength | 850nm |
Depth (mm) | 72.0 |
Height (mm) | 13.0 |
Width (mm) | 18.4 |
Weight (Grams) | 34.0 |
Other Features | * DDM * MTBF: 1,489,426 hours * Delivers reliable 40 Gigabit connections for 40GBase-SR4 compliant networks |
