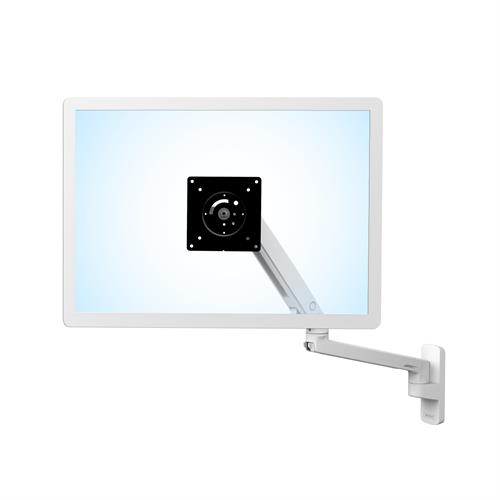

ERGOTRON MXV WALL MONITOR ARM (WHITE) 45-505-216
SKU
257788
Brand
MPN
45-505-216
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$236.00
Buy Now And Earn 236 Reward Points!
Product Benefits
- Saves valuable desk space with the cable management system and narrower profile—25% slimmer than the LX arm
- Monitor extension of up to 24.6" (63 cm); folds to within 4.4" (11 cm) of wall
- Allows you to easily adjust your display with a light touch thanks to patented Constant Force™ technology
- Creates additional flexibility with a friction pivot that offers a 180-degree tilt
- Supports displays weighing 7 to 20 lbs (3.2 to 9.1 kg)
- Stays out of your way with a flexible folding arm and cable management system
- Prevents your arm from making contact with the wall with the base’s rotation-stop, which limits its range to 180 degrees ‡
- Attaches directly to sturdy vertical surfaces with a wall mount bracket, or slide it onto our popular Wall Track accessory
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
- Arrives fully assembled for you to easily install
Add style without sacrificing functionality. The sleek and lightweight MXV incorporates a modern V-shaped design with proven engineering to create a stable yet flexible platform for your LCD monitor or TV.
With a slim profile, MXV offers 13" (33 cm) of height adjustment, integrated tilt and more—all on a swivel wall mount base. The arm’s adjustability helps increase viewing comfort, while its upscale finish leaves a stylish impression.
- Part Number: 45-505-216 (white), 45-505-026 (polished aluminum), 45-505-231 (silver)
- Description: MXV Wall Mount LCD Monitor Arm
- Includes fully assembled arm, wall mount base, mounting hardware
- Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- Arm folds back over the base into a compact retracted position—space between wall and VESA plate is just 4.4" (11 cm) when fully retracted
- Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately)
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- † Tilt Range: 90° backward, 90° forward
- ‡ Pan Range: 180° at base; 360° between extension and arm
- Extension Range: 20.2" (51 cm); maximum extension reach = 24.6" (63 cm) from back of base to VESA mounting plate
- Product Weight: 6.4 lbs (2.9 kg)
- Shipping Dimensions: 34.4" x 9.4" x 6.3" (87.5 x 23.8 x 16 cm)
- Shipping Weight: 7.3 lbs (3.3 kg)
- Warranty: Ten (10) years
| Marketing Text | Add style without sacrificing functionality. The sleek and lightweight MXV incorporates a modern V-shaped design with proven engineering to create a stable yet flexible platform for your LCD monitor or TV. |
| PI Date | Jan 2018 |
| Brand Name | Ergotron |
| Manufacturer Web Site | http://www.ergotron.com |
| Product Type | Monitor Arm |
| Display Size Supported | 34inch |
| Weight Capacity | 3.2 - 9.1Kg |
| Tilt | 180degree |
| Pan | 360degree |
| Rotation | 360degree |
| Weight (Kg) | 2.9 |
| Color | Silver |
| Package Includes | * fully assembled arm, wall mount base, mounting hardware |
| Other Features | * Stays out of your way with a flexible folding arm and cable management system * Creates additional flexibility with a friction pivot that offers a 180-degree tilt |
| Warranty Information | 10 Years |
