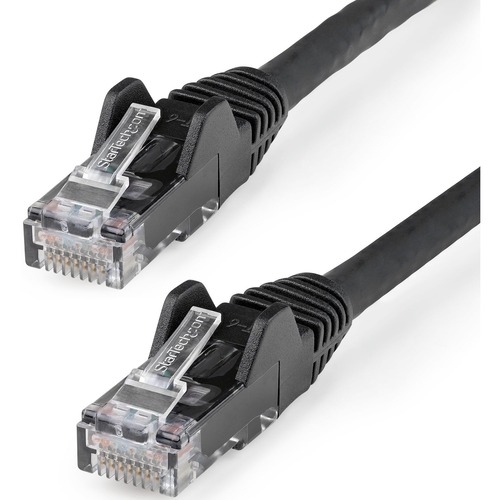

StarTech.com 7 m Category 6 Network Cable for Network Device, Network Card, Server, Router, NAS, VoIP Device, PoE-enabled Device, Workstation, Notebook, IPTV, Security Camera - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male N6L

SKU
387510
Brand
MPN
N6LPATCH7MBK
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$21.00
Buy Now And Earn 21 Reward Points!

StarTech.com 7 m Category 6 Network Cable for Network Device, Network Card, Server, Router, NAS, VoIP Device, PoE-enabled Device, Workstation, Notebook, IPTV, Security Camera - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Gold Plated Contact - LSZH - 24 AWG - Black

StarTech.com Advantage

StarTech.com products are designed for IT Professionals to meet their technical standards. Product quality, compatibility and reliability are ensured by our in-house and third-party labs and certifications by leading technology companies. StarTech.com's line of CAT6 cables use 100% copper and gold-plated pins. All of our Category 6 cable products undergo rigorous physical and electrical tests, including the repetitive bend cycle test. Each cable is individually tested (Fluke® patch cord test) to measure worst case NEXT and RL. Beyond our own testing, we work with leading external test labs such as ETL, to obtain product performance and safety certifications. Backed by a risk-free StarTech.com lifetime warranty and 24 hour, five day-a-week, support from qualified Technical Advisors, our brand is trusted throughout the IT ecosystem and used by over 80% of Fortune 500 companies.

Product Overview

Low Smoke Zero Halogen (LSZH) Category 6 Snagless Network Patch Cable supports error-free Multi Gigabit connections: 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 160ft/55m). This PVC free high-performance cable offers reliable connectivity to all networking devices, such as Network Interface Cards (NIC), servers, routers, network attached storage (NAS), VoIP phones, PoE devices, etc.

This Eco-friendly LSZH CAT6 cable produces lower levels of toxic corrosive fumes and white smoke in the event of a fire, which offers higher visibility, allowing for a safer and faster evacuation.

StarTech.com offers the widest selection of lengths and colors, to keep your business network and workstations connected and organized.

High Performance CAT6 Ethernet Cable

  • Reliably Connect Your Ethernet Devices
  • Error-free Multi Gigabit support - 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 55m), 10GBase-T
  • 650MHz support for increased bandwidth
  • 100% Copper Cable, Ideal for Powering Your Devices Over Ethernet
Made with 100% bare copper wire, StarTech.com cables are fully compliant with, unlike other cables that use copper clad aluminum (CCA) wire.
  • Tested up to 100W continuous power throughput.
  • Complies with IEEE 802.3bt Type 4 standard.
  • Excellent heat dissipation over prolonged use.
Supports high power PoE for Laptops, IP TVs, Security Cameras, VoIP phones, NAS devices, etc.
  • Quality Construction
  • 50-micron gold platted connectors
  • Snagless boot
  • 40 mm (1.57") bend radius for strong molded strain relief and improved flexibility
The Snagless design protects the RJ45 clip and ensures the cables are easily pulled through constrained spaces such as conduits or raceways and prevents the cable from getting caught/damaged during installation.

Physical Characteristics
Weight (Approximate) 255.1 g
Insulation Material High-density Polyethylene (HDPE)
Product Color Black
Product Material Copper
Copper Clad Aluminum
Technical Information
Cable Length 7 m
Data Transfer Rate 10 Gbit/s
Device Supported PoE-enabled Device
VoIP Device
Network Device
Network Card
NAS
Router
Security Camera
IPTV
Workstation
Notebook
Server
Jacket Type LSZH
Shielding No
Features Near End Cross Talk (NEXT)
Stranded
Fray Resistant
Flexible
Molded
PoE
Bendable
Strain Relief
Crosstalk Protection
PVC Free
Damage Resistant
Cable Characteristic Patch Cable
Cable Type Category 6
Connector Type on First End RJ-45 Network - Male
Connector Type on Second End RJ-45 Network - Male
American Wire Gauge 24 AWG
Contact Plating Gold
Connector on First End Details 1 x RJ-45 Network - Male
Connector on Second End Details 1 x RJ-45 Network - Male
Boot Type Snagless
General Information
Product Type Network Cable
Manufacturer Part Number N6LPATCH7MBK
Manufacturer Website Address http://www.startech.com/au
Manufacturer StarTech.com
Product Name Cat.6 Patch Network Cable
Brand Name StarTech.com
