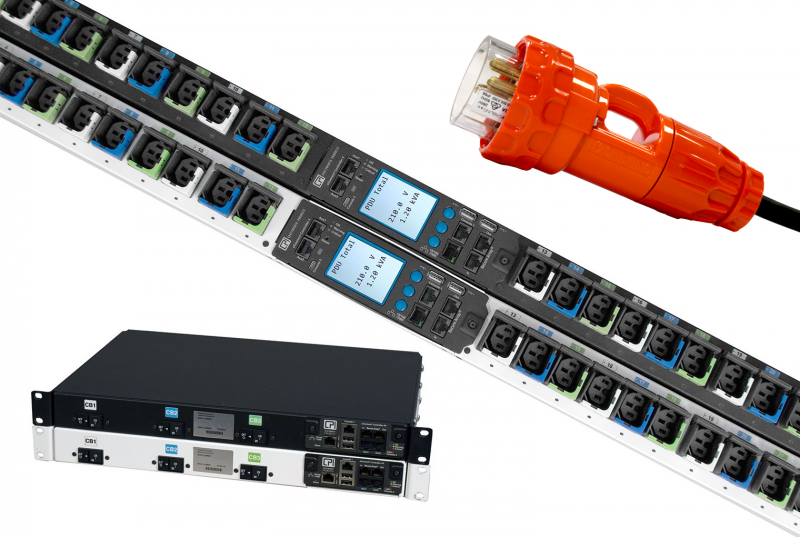

The Chatsworth Monitored eConnect PDU delivers advanced power monitoring and reliable distribution for high-density data centers. Designed for 42U and higher cabinets, this vertical PDU features an IEC 60309 32A 1P+N+E input, supporting up to 6.1kW (UL) or 7.7kW (CE) power capacity. Its ±1% metering accuracy, LCD display, and Secure Array IP Consolidation enable seamless energy management and network efficiency.

Equipped with (36) C13 and (6) C19 locking outlets, this PDU prevents accidental disconnections, ensuring secure power delivery for mission-critical IT equipment. The 100% rated hydraulic magnetic breakers provide superior overload protection, while the field-replaceable controller enhances serviceability and longevity.

This intelligent PDU integrates with leading data center management solutions via SNMPv1/v2/v3, RESTful API, CLI, LDAP, and Radius. With onboard GUI access and 10/100/1000MB connectivity, remote monitoring and control are seamless. It also supports environmental sensor and electronic lock integration for enhanced security.

Operating at up to 149°F (65°C), this PDU is engineered for demanding environments, with tool-less mounting for fast, hassle-free installation.

FEATURES:
Aussie-compliant 32AMP PDU plug with patented audit ring, tough polycarbonate build, and seamless APC and Power IQ integration.
High-capacity monitored PDU for 42U & higher cabinets
(36) C13 + (6) C19 locking outlets prevent accidental disconnections
±1% metering accuracy with an integrated LCD display
IEC 60309 32A input with up to 7.7kW capacity
Secure Array IP Consolidation for streamlined network management
Onboard GUI, SNMPv1/v2/v3, RESTful API, and CLI support
Environmental sensor & electronic lock integration ready
100% rated hydraulic magnetic breakers for safety
Tool-less vertical mounting for easy installation
SPECIFICATIONS:
Input Type: IEC 60309 32A 1P+N+E
Outlets: (36) C13 + (6) C19 locking outlets
Maximum Power Capacity: 6.1kW (UL) / 7.7kW (CE)
Metering Accuracy: ±1%
Display: LCD for local monitoring
Communication: 10/100/1000MB port, SNMPv1/v2/v3, RESTful API, CLI
Authentication: LDAP & Radius integration, HTTPs
Operating Temperature: Up to 149°F (65°C)
Breakers: 100% rated hydraulic magnetic
Mounting: Vertical, tool-less installation
Color: Black
PRODUCT SHOWCASE
WARRANTY:

1-Year Limited Warranty
