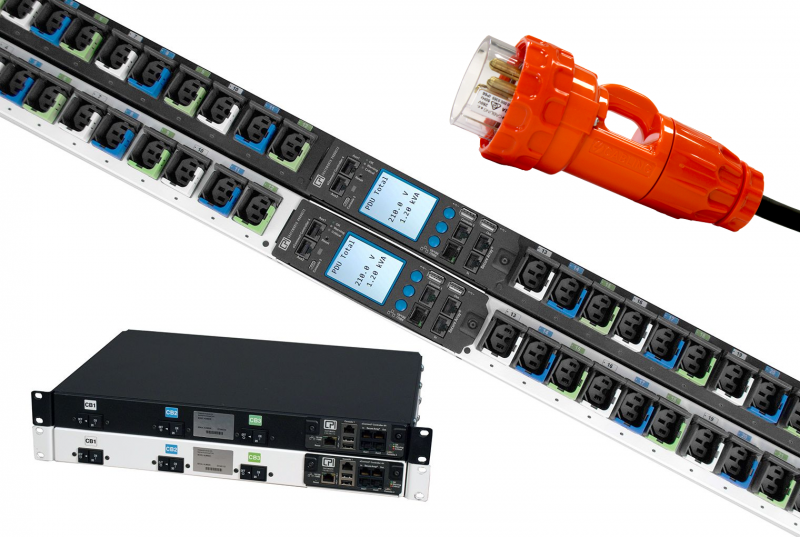

The Chatsworth Monitored Pro eConnect PDU is a high-performance vertical power distribution unit designed for 42U and higher cabinets. Featuring a 220-240V 1P/32A IEC 60309 input, this PDU delivers up to 6.1kW in North America and 7.7kW in international applications. With ±1% metering accuracy and an integrated LCD display, real-time power monitoring is precise and efficient.

Equipped with (18) C13 and (6) C19 locking outlets, this PDU ensures secure power connections while preventing accidental disconnections. Secure Array IP Consolidation enables streamlined network management, while SNMPv1/v2/v3, LDAP, and Radius integration provide advanced remote access and security.

The field-replaceable controller enhances serviceability, and environmental sensor and electronic lock integration readiness offer scalability for future expansion. Built with 100% rated hydraulic magnetic breakers for overload protection, this PDU is engineered to operate in high-temperature environments up to 149°F (65°C).

FEATURES:
Aussie-compliant 32AMP PDU plug with patented audit ring, tough polycarbonate build, and seamless APC and Power IQ integration.
Vertical monitored PDU designed for 42U & higher cabinets
(18) C13 + (6) C19 locking outlets for secure power distribution
±1% metering accuracy with an integrated LCD display
220-240V 1P/32A input with up to 7.7kW capacity
Secure Array IP Consolidation for streamlined network management
Onboard GUI, SNMPv1/v2/v3, LDAP, and Radius integration for remote access
Environmental sensor & electronic lock integration ready
100% rated hydraulic magnetic breakers for safety and reliability
Tool-less vertical mounting for easy installation
SPECIFICATIONS:
Input Type: 220-240V 1P/32A IEC 60309
Outlets: (18) C13 + (6) C19 locking outlets
Maximum Power Capacity: 6.1kW (North America) / 7.7kW (International)
Metering Accuracy: ±1%
Display: LCD for local power monitoring
Communication: 10/100/1000MB port, SNMPv1/v2/v3
Authentication: LDAP & Radius integration, HTTPs
Operating Temperature: Up to 149°F (65°C)
Breakers: 100% rated hydraulic magnetic
Mounting: Vertical, tool-less installation
Color: Black
PRODUCT SHOWCASE
WARRANTY:

1-Year Limited Warranty
