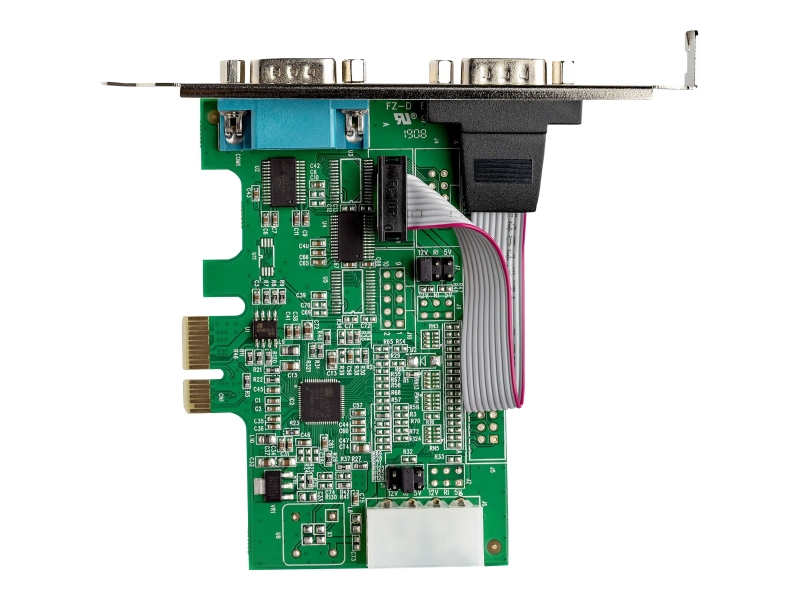

STARTECH 2-PORT PCIE RS232SERIAL ADAPTER CARD, LTW PEX2S953
SKU
384412
Brand
MPN
PEX2S953
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$94.00
Buy Now And Earn 94 Reward Points!
ACCEPT
20260702120258
[email protected]
close
Events
Microsites
About
Win11
Home > Search Products > PEX2S953
close
Browse by Product Type
Browse by Vendors
SEARCH KEYWORDS
search
close
Advanced search
TYPE
CATEGORY
SERIES
BRAND
Search
Reset
Slide 3 of 3
close
BRAND | STATUS ACTIVE | SKU
RRP(EX GST)
RESELLER BUY(EX GST)
SOH NaN
No Specification found
Sorry, the specification has no results.
Please try different criteria.
close
Error
API calls quota exceeded! maximum admitted 5 per 1m.
20260702120258
[email protected]
close
Events
Microsites
About
Win11
Home > Search Products > PEX2S953
close
Browse by Product Type
Browse by Vendors
SEARCH KEYWORDS
search
close
Advanced search
TYPE
CATEGORY
SERIES
BRAND
Search
Reset
Slide 3 of 3
close
BRAND | STATUS ACTIVE | SKU
RRP(EX GST)
RESELLER BUY(EX GST)
SOH NaN
No Specification found
Sorry, the specification has no results.
Please try different criteria.
close
Error
API calls quota exceeded! maximum admitted 5 per 1m.
Warranty Information
Warranty
Lifetime
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
1 - LP4 (4 pin; Large Drive Power)
External Ports
2 - DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature
-10°C to 80°C (14°F to 176°F)
Storage Temperature
-20°C to 100°C (-4°F to 212°F)
Humidity
5~85% RH
Hardware
Ports
2
Interface
Serial
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Chipset ID
Asix AX99100
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
5.6 in [14.2 cm]
Shipping (Package) Weight
4.8 oz [136.0 g]
Package Width
6.7 in [17.0 cm]
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
5, 6, 7, 8, 9
FIFO
256 Bytes
Flow Control
None, Xon/Xoff, RTS/CTS
Parity
None, Odd, Even, Space, Mark
Stop Bits
1, 1.5, 2
MTBF
222,366 hours
Physical Characteristics
Product Height
0.6 in [1.5 cm]
Product Length
3.0 in [7.5 cm]
Weight of Product
2.0 oz [56.0 g]
Product Width
2.5 in [6.3 cm]
Color
Green
Material
Steel
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 2.6.x LTS Versions only
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 2.6.x LTS Versions only
Microsoft WHQL Certified
Yes
Special Notes / Requirements
Note
Selectable power output on pin 9 of the serial port

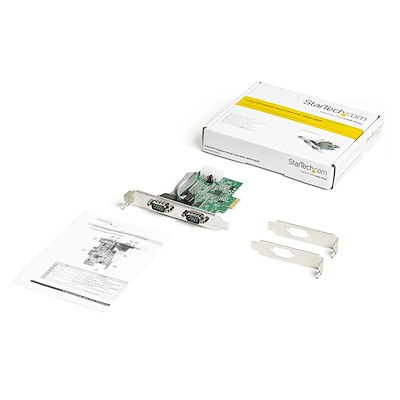

What's in the Box
Included in Package
1 - Two Port Serial Card
2 - Low Profile Bracket
1 - Quick Start Guide
