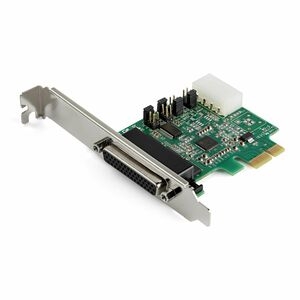

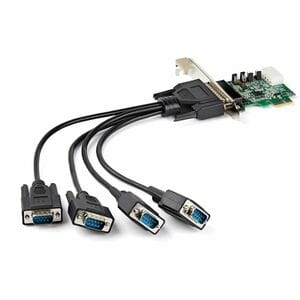

Startech 4-Port PCI Express RS232 Serial Adapter Card PEX4S953 - 16950 UART - 256-byte FIFO Cache - ASIX AX99100 - Full Profile Bracket - Replacement for PEX4S952
With broad OS support, including for Windows and Linux, this multiport PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-sized bracket, and includes an optional low-profile bracket, so installation is easy regardless of the case form factor. This expansion card is a direct replacement for PEX4S952.
Experience Optimal TechnologyThis PCIe to serial adapter supports the following features:
- Industry standard 16950 UART compatible
- Supports max baud rate of up-to 921.6Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 256-byte depth FIFO cache per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits (one per port)
- Asix AX99100 chipset
- Base PCI Express 1.1 compliant
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEX4S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Ports Expandability | 4 x DB-9 RS-232 - Serial, Via Cable |
Product Type | Multiport Serial Adapter |
Manufacturer Website Address | http://www.startech.com/au |
Packaged Quantity | 1 |
Manufacturer | StarTech.com |
Product Name | 4 Port Full Profile Serial Card |
Brand Name | StarTech.com |
Form Factor | Plug-in Card |
Host Interface | PCI Express 1.1 |
Platform Supported | Linux |
PC | |
UART Type | 16950 |
Maximum Data Transfer Rate | 921.60 kbit/s |
