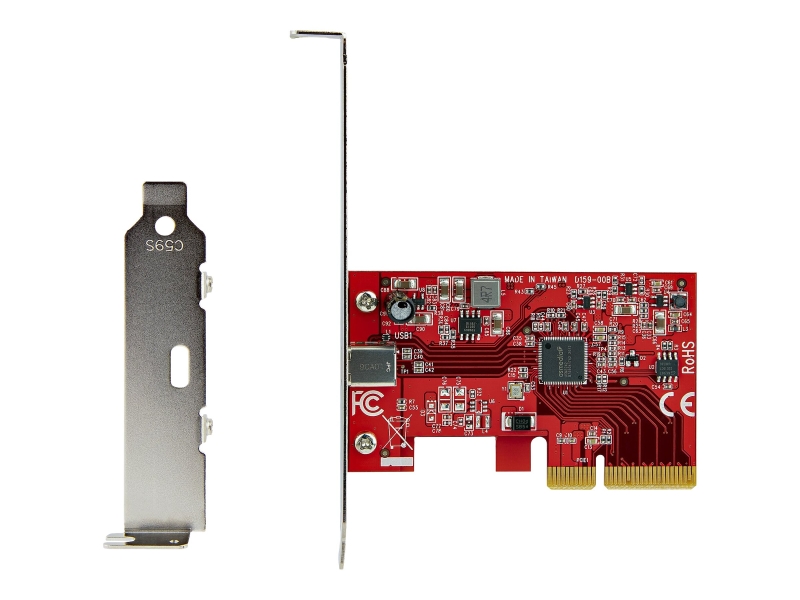

main product photo

STARTECH.COM USB 3.2 GEN 2X2 PCIE CARD - USB-C 20GBPS PCI EXPRESS 3.0 X4 2 YR PEXUSB321C

SKU
393777
Brand
Startech
Manufacturer Link
MPN
PEXUSB321C
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$103.00
Buy Now And Earn 103 Reward Points!
Add to Compare

HIGH PERFORMANCE: Add 1x USB-C SuperSpeed 20Gbps port to your desktop PC with this USB 3.2 Gen 2x2 PCIe Card; Expansion card provides up to 15W (5V @ 3A) to power & charge devices
FULL USB 3.2 GEN 2X2 SPEEDS: Featuring the ASMedia ASM3242 host controller using x4 lanes of PCIe 3.0, this card is fully capable of speeds up to 20Gbps enabling fast access to high-performance devices like NVMe drives and SSDs
MAXIMIZED USB PERFORMANCE: USB Type-C PCI Express card supports Multiple INs to reduce bandwidth loss when mix speed devices are connected to a Hub (hub must also support this feature); UASP support improves performance with storage devices
COMPATIBILITY: Add-on card installs in full or low-profile (bracket incl) PCIe 3.0 x4 slot (Backward compatible w/PCIe 2.0); Windows/Linux/macOS w/auto drivers Win 8 & up; Works w/USB 3.2 Gen 2/3.0/2.0 devices; Does not support DP-Alt mode for video over USB-C
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; This USB-C PCI-e adapter card is backed for 2-years by StarTech.com, incl. free 24/5 North America based multi-lingual tech support

Warranty Information
Warranty
2 Years

Connector(s)
Connector Type(s)
1 - PCI Express x4
External Ports
1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)

Environmental
Operating Temperature
0°C to 85°C (32°F to 185°F)
Storage Temperature
-25°C to 85°C (-13°F to 185°F)
Humidity
15% ~ 90% RH

Hardware
Ports
1
Interface
PCI Express x4
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
USB 3.2 Specification Rev. 1.0

PCI Express Base Specification Rev. 3.0

Intel xHCI Specification Rev. 1.1

UASP (USB Attached SCSI Protocol) Rev. 1.0
Chipset ID
ASMedia - ASM3242

Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
6.7 in [17.0 cm]
Shipping (Package) Weight
3.6 oz [101.0 g]
Package Width
5.6 in [14.2 cm]
Package Quantity
1

Performance
Maximum Data Transfer Rate
20Gbps
Type and Rate
USB 3.2 Gen 2x2 (20Gbps)
UASP Support
Yes
MTBF
3,126,209 Hours

Physical Characteristics
Product Height
0.9 in [2.2 cm]
Product Length
2.0 in [5.1 cm]
Weight of Product
1.3 oz [37.0 g]
Product Width
3.1 in [8.0 cm]
Color
Red

Software
OS Compatibility
Windows® 8, 8.1, 10, 11
Windows Server® 2012 R2, 2016, 2019
macOS 10.13 to 10.15, 11.0, 12.0, 13.0
Linux® 3.5 and up - LTS Versions only

Special Notes / Requirements
System and Cable Requirements
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
Note
The card's USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery.

The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 10Gbps. A PCI Express Gen 2 or Gen 3 port is required to reach speeds up to 20Gbps.

What's in the Box
Included in Package
1 - PCI Express USB Card

1 - Full Profile Bracket (Installed)

1 - Low Profile Bracket

1 - Quick-Start Guide
STARTECH.COM USB 3.2 GEN 2X2 PCIE CARD - USB-C 20GBPS PCI EXPRESS 3.0 X4 2 YR
