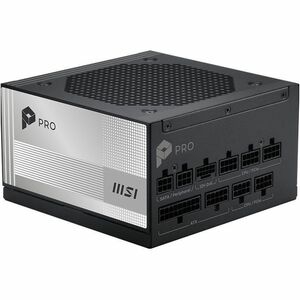

Msi Pro A1000PL PCIE5 - 1000W - 80+ Platinum - Full Modular - Atx 3.1 - PCIe 5.1 - 7Y Warranty PRO A1000PL PCIE5
SKU
447435
Brand
MPN
PRO A1000PL PCIE5
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$219.00
Buy Now And Earn 219 Reward Points!
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.
GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.
• 1 x 16-pin VGA Power Connector • 3 x 8-pin VGA Power Connector • 2 x 8-pin VGA Power Connector • 1 x 8-pin VGA Power Connector Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.
105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.
Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
Alloy Copper Connector Terminals
The cable connectors are made of nickel-plated copper alloy terminals, effectively prevents oxidation, maintaining the terminal's conductivity and durability when there is a higher surge in current.
Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.
GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.
• 1 x 16-pin VGA Power Connector • 3 x 8-pin VGA Power Connector • 2 x 8-pin VGA Power Connector • 1 x 8-pin VGA Power Connector Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.
105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.
Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
Alloy Copper Connector Terminals
The cable connectors are made of nickel-plated copper alloy terminals, effectively prevents oxidation, maintaining the terminal's conductivity and durability when there is a higher surge in current.
| Product Type | Power Supply |
| Efficiency | 92% |
| Input Voltage | 120 V AC, 230 V AC |
| Output Power | 1 kW |
| Output Voltage | -12 V DC, 5 V SB, 5 V DC, 3 V DC, 12 V DC |
| Form Factor | ATX |
| Product Model | PRO A1000PL PCIE5 |
| Brand Name | MSI |
| Number of +12V Rails | 1 |
| Product Family | Pro |
| Modular | Yes |
| Specification Compliance | ATX 3.1 |
| Product Color | Black |
| PCI Express Connector | Yes |
| Color Family | Black |
| Energy Efficiency Certification | 80 Plus Platinum |
| Modular Type | Fully Modular |
| Manufacturer Part Number | PRO A1000PL PCIE5 |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Name | PRO A1000PL PCIE5 1000W Power Supply |
| Product Series | Pro |
| Number of SATA Power Connectors | 6 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of (6+2 pin) PCI Express Power Connectors | 3 |
| PCI Express Version | 5.1 |
| Certifications & Standards | UL |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 150 mm |
| Output Current | 2.50 A, 20 A, 300 mA, 83.30 A |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Frequency | 50-60Hz |
| Output Voltage Detail | 5 V SB @ 2.5 A, 3 V DC @ 20 A, 12 V DC @ 83.3 A, -12 V DC @ 0.3 A, 5 V DC @ 20 A |
| Fan Diameter | 120 mm |
| Protection Type | Over Current, Under Voltage, Surge & Inrush Protection, Short Circuit, Over Voltage, Over Temperature, No Load, Over Power |
| Fan Bearing Type | Hydraulic Bearing |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| Shipping Dimensions | Height 11.2, Width 19.2, Length 30, Shipping Weight 2.7 KG |
