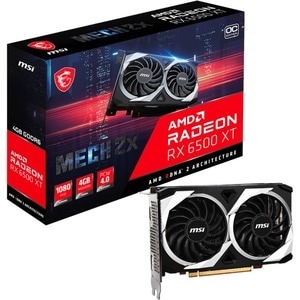

MSI AMD Radeon RX 6500 XT Graphic Card - 4 GB GDDR6 - 2.69 GHz Game Clock - 2.83 GHz Boost Clock - 64 bit Bus Width - PCI Express 4.0 x4 - DisplayPort - HDMI RADEON RX 6500 XT MECH 2X 4G OC
SKU
386311
Brand
MPN
RADEON RX 6500 XT MECH 2X 4G OC
Warranty
Standard Manufacturer's Warranty
$549.00
Buy Now And Earn 549 Reward Points!
MSI AMD Radeon RX 6500 XT Graphic Card - 4 GB GDDR6 - 2.69 GHz Game Clock - 2.83 GHz Boost Clock - 64 bit Bus Width - PCI Express 4.0 x4 - DisplayPort - HDMI
AMD Radeon™ RX 6000 MECH SERIES | ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
TRACES OF BRILLIANCE | TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Features
- Zero Frozr: Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- TORX FAN 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Dual Fan: Two fans and a huge heatsink ensure a cool and quiet experience for you.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
- Custom PCB: The custom PCB has been engineered with hardened circuits and optimized trace routing for performance and reliability.
- Backplate: A clean-looking backplate reinforces the length of the card.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
Guides & Documents
-
Brochure
Miscellaneous
| Platform Supported | PC |
Power Description
| Power Supply Wattage | 400 W |
| Power Connector | 1x 6-pin |
Memory
| Standard Memory | 4 GB |
| Memory Technology | GDDR6 |
| Bus Width | 64 bit |
Interfaces/Ports
| Host Interface | PCI Express 4.0 x4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Number of HDMI Outputs | 1 |
General Information
| Product Type | Graphic Card |
| Manufacturer Part Number | RADEON RX 6500 XT MECH 2X 4G OC |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | Radeon RX 6500 XT MECH 2X 4G OC |
| Product Name | Radeon RX 6500 XT MECH 2X 4G OC Graphic Card |
| Product Line | MECH |
| Brand Name | MSI |
Technical Information
| API Supported | DirectX 12 |
| OpenGL 4.6 | |
| Number of Monitors Supported | 2 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 1024 |
Physical Characteristics
| Weight (Approximate) | 452 g |
| Form Factor | Plug-in Card |
| Length | 172 mm |
| Cooler Type | Fan Cooler |
| Height | 42 mm |
| Width | 112 mm |
Processor & Chipset
| Chipset Manufacturer | AMD |
| Chipset Model | RX 6500 XT |
| Chipset Line | Radeon |
| Chipset Series | RX 6000 |
| GPU Boost Clock | 2.83 GHz |
| Game Clock | 2.69 GHz |
