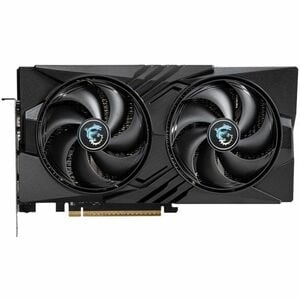

Msi RTX 5060 8G GAMING OC RTX 5060 8G GAMING OC
SKU
429094
Brand
MPN
RTX 5060 8G GAMING OC
Warranty
Standard Manufacturer's Warranty
$688.00
Buy Now And Earn 688 Reward Points!
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
- Extreme Performance: 2640 MHz (MSI Center)
- Boost: 2625 MHz
- TWIN FROZR 10: Experience superior cooling and quieter performance with MSI's enhanced fan blade design.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Power Description | |
| Power Supply Wattage | 550 W |
| Maximum Power Consumption | 155 W |
| Power Connector | 1x 8-pin |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | GDDR7 |
| Bus Width | 128 bit |
| Maximum Memory Bandwidth | 28 GB/s |
| Interfaces/Ports | |
| Host Interface | PCI Express 5.0 x16 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Form Factor | Internal |
| Length | 248 mm |
| Cooler Type | Fan Cooler |
| Height | 41 mm |
| Width | 135 mm |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 5060 |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| GPU Boost Clock | 2625 MHz |
| Game Clock | 2640 MHz |
| Technical Information | |
| API Supported | OpenGL 4.6,DirectX 12 Ultimate |
| Number of Monitors Supported | 4 |
| Frame Lock/Genlock | Yes |
| Frame Lock/Genlock Type | G-sync |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 3840 |
| General Information | |
| Product Type | Graphic Card |
| Manufacturer Part Number | RTX-5060-8G-GAMING-OC |
| Manufacturer Website Address | https://www.msi.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Micro-Star INT'L CO., LTD. |
| Product Model | G5060-8GC |
| Product Name | GeForce RTX™ 5060 8G GAMING OC |
| Brand Name | MSI |
