Msi GeForce RTX 5060 8G GAMING TRIO OC WHITE RTX 5060 8G GAMING TRIO OC WHITE
SKU
429086
Brand
MPN
RTX 5060 8G GAMING TRIO OC WHITE
Warranty
Standard Manufacturer's Warranty
$717.00
Buy Now And Earn 717 Reward Points!
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
- Extreme Performance: 2640 MHz (MSI Center)
- Boost: 2625 MHz
- TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

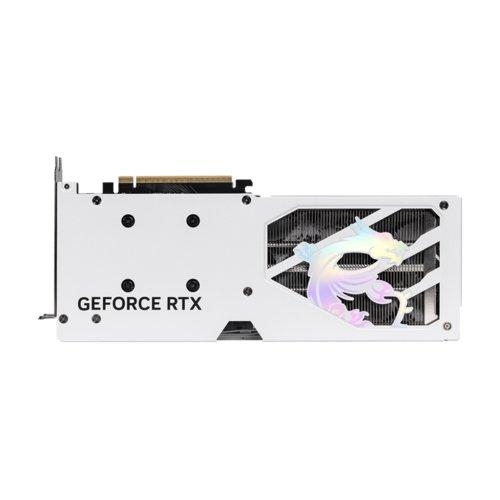

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Power Description | |
| Power Supply Wattage | 550 W |
| Power Connector | 1x 8-pin |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | GDDR7 |
| Bus Width | 128 bit |
| Maximum Memory Bandwidth | 28 GB/s |
| Interfaces/Ports | |
| Host Interface | PCI Express 5.0 x16 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 797 g |
| Form Factor | Internal |
| Length | 300 mm |
| Cooler Type | Fan Cooler |
| Height | 44 mm |
| Width | 125 mm |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 5060 |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| GPU Boost Clock | 2625 MHz |
| Game Clock | 2640 MHz |
| Technical Information | |
| API Supported | OpenGL 4.6,DirectX 12 Ultimate |
| HDCP Supported | Yes |
| Number of Monitors Supported | 4 |
| Frame Lock/Genlock | Yes |
| Frame Lock/Genlock Type | G-sync |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 3840 |
| General Information | |
| Product Type | Graphic Card |
| Manufacturer Part Number | RTX-5060-8G-GAMING-TRIO-OC-WHITE |
| Manufacturer Website Address | https://www.msi.com |
| Packaged Quantity | 1 |
| Manufacturer | Micro-Star INT'L CO., LTD. |
| Product Model | G5060-8GTCW |
| Product Name | GeForce RTX™ 5060 8G GAMING TRIO OC WHITE |
| Product Line | GAMING TRIO |
| Brand Name | MSI |
