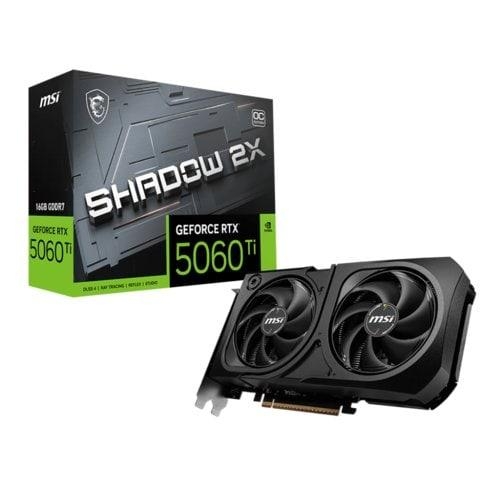

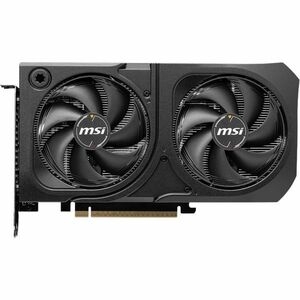

Msi GeForce RTX 5060 Ti 16G SHADOW 2X OC PLUS RTX 5060 TI 16G SHADOW 2X OC PLUS
SKU
430547
Brand
MPN
RTX 5060 TI 16G SHADOW 2X OC PLUS
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $800.00 Regular Price $920.00
Buy Now And Earn 800 Reward Points!
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
- Extreme Performance: 2617 MHz (MSI Center)
- Boost: 2602 MHz
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Power Description | |
| Power Supply Wattage | 600 W |
| Maximum Power Consumption | 180 W |
| Power Connector | 1x 8-pin |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | GDDR7 |
| Bus Width | 128 bit |
| Maximum Memory Bandwidth | 28 GB/s |
| Interfaces/Ports | |
| Host Interface | PCI Express 5.0 x16 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 578 g |
| Form Factor | Internal |
| Length | 226 mm |
| Cooler Type | Fan Cooler |
| Height | 41 mm |
| Width | 126 mm |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 5060 Ti |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| GPU Boost Clock | 2602 MHz |
| Game Clock | 2617 MHz |
| Technical Information | |
| API Supported | OpenGL 4.6,DirectX 12 Ultimate |
| HDCP Supported | Yes |
| Number of Monitors Supported | 4 |
| Frame Lock/Genlock | Yes |
| Frame Lock/Genlock Type | G-sync |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 4608 |
| General Information | |
| Product Type | Graphic Card |
| Manufacturer Part Number | RTX-5060-Ti-16G-SHADOW-2X-OC-PLUS |
| Manufacturer Website Address | https://www.msi.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Micro-Star INTL CO., LTD. |
| Product Model | G506T-16S2CP |
| Product Name | GeForce RTX™ 5060 Ti 16G SHADOW 2X OC PLUS |
| Product Line | Shadow 2X |
| Brand Name | MSI |
