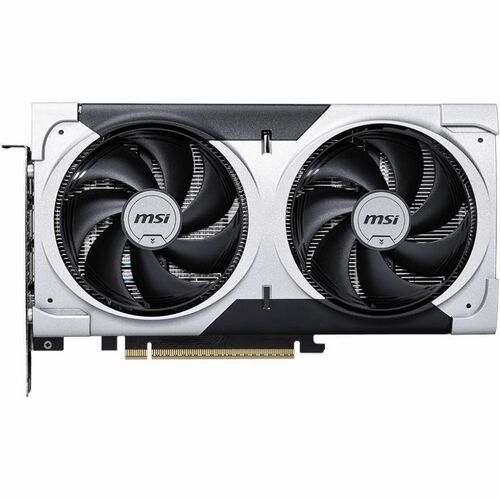

Msi GeForce RTX 5060 Ti 8G VENTUS 2X PLUS RTX 5060 TI 8G VENTUS 2X PLUS
TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
DUAL-FAN THERMAL DESIGN
Two fans on a large heatsink ensure great cooling performance with a quieter experience.
- Dual Fan:
- Two fans and a huge heatsink ensure a cool and quiet experience for you.
- STORMFORCE FAN:
- Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Reinforcing Backplate:
- The reinforcing backplate features a flow-through design that provides additional ventilation.
- Zero Frozr:
- The fans completely stop when temperatures are relatively low, eliminating all noise.
- DrMOS:
- DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
- Fuse:
- Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
- MSI Center:
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner:
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
Miscellaneous | |
Platform Supported | PC |
Power Description | |
Power Supply Wattage | 600 W |
Power Connector | 1x 8-pin |
Memory | |
Standard Memory | 8 GB |
Memory Technology | GDDR7 |
Bus Width | 128 bit |
Interfaces/Ports | |
Host Interface | PCI Express 5.0 x16 |
HDMI | Yes |
DisplayPort | Yes |
Number of DisplayPort Outputs | 3 |
Number of HDMI Outputs | 1 |
Processor & Chipset | |
Chipset Manufacturer | NVIDIA |
Chipset Model | RTX 5060 Ti |
Chipset Line | GeForce |
Chipset Series | RTX |
GPU Boost Clock | 2.59 GHz |
Physical Characteristics | |
Weight (Approximate) | 573 g |
Form Factor | Plug-in Card |
Length | 227 mm |
Cooler Type | Fan Cooler |
Height | 41 mm |
Width | 127 mm |
Technical Information | |
API Supported | DirectX 12 Ultimate |
OpenGL 4.6 | |
Features | Dual-fan Cooler |
Number of Monitors Supported | 4 |
Maximum Digital Display Resolution | 7680 x 4320 |
CUDA Cores | 4608 |
AI-powered | Yes |
General Information | |
Product Type | Graphic Card |
Manufacturer Part Number | RTX 5060 TI 8G VENTUS 2X PLUS |
Manufacturer Website Address | http://au.msi.com |
Manufacturer | MSI |
Product Model | G506T-8V2P |
Product Name | GeForce RTX 5060 Ti 8G VENTUS 2X PLUS Graphic Card |
Product Line | VENTUS 2X |
Brand Name | MSI |
